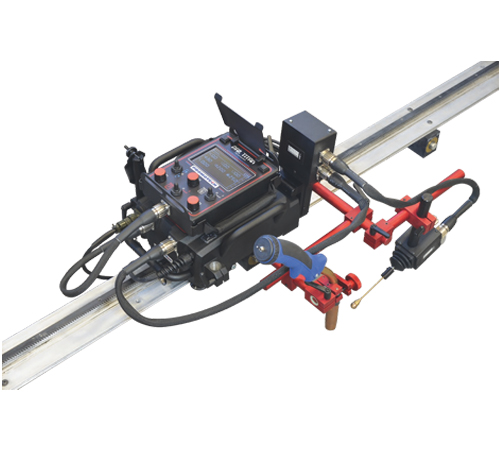

Rail Titan

Rail Titan

MODULAR TIG-MIG-MAG WELDING AND CUTTING RAIL TRACTOR
Rail Titan is fully modular mechanized tractor that can be custom configured for TIG-MIG-MAG welding, oxy-fuel or plasma cutting and gouging applications on flat or curved plate, tube and pipe. Linear torch oscillator produces straight, triangle, trapezoid and square weld paths.

Rail Titan can travel on hi-flex, semi-flexible, rigid or ring tracks that can be clamped to ferrous materials with magnetic units and to non-ferrous materials by means of vacuum track system incl. vacuum pump and vacuum units.

  • Suitable for TIG welding (HF resistant)
  • Robust design with die-cast aluminum housing
  • Ergonomic remote control pendant with simple and easy to find control knobs makes adjustments possible without lifting of the operators welding hood
  • Programmable path of stitch welds
  • Suitable for variety of circumferential and irregular surface applications down to min. radius of 100 mm (4”)
    • Ring tracks on diameters from 200 mm (8”) OD up to 3 m (10 ft) OD
    • Hi-Flex tracks on diameters from 1500 mm (59”) OD upwards
    • Semi-flexible tracks can be flexed to minimum radius of 5 m (16 ft) without permanent deformation
  • Seam tracking enables active compensation of torch position vertically and horizontally with and without oscillation
  • New type of signal sockets/plugs feature increased HF immunity and improved grip for easier tightening & loosening
  • Suitable for all welding positions on both ferromagnetic and non-ferromagnetic materials thanks to rack and pinion drive and various tracks equipped with magnetic or vacuum units
  • Rail Titan produces consistent high quality welds and cuts in a fraction of the time required by manual operations
  • Wide input voltage range: 100-240V, 50-60Hz 1ph (single phase)
  • Trailer manufacturing
  • Truck tanks
  • Oil tanks
  • Water storage tanks
  • Pressure vessels
  • Vessel overlay / hardfacing
  • Bridge girders
  • Structural steel
  • Structural towers
  • Panel welding
  • Transformers
  • Shipyards
  • Any application demanding long continuous welds

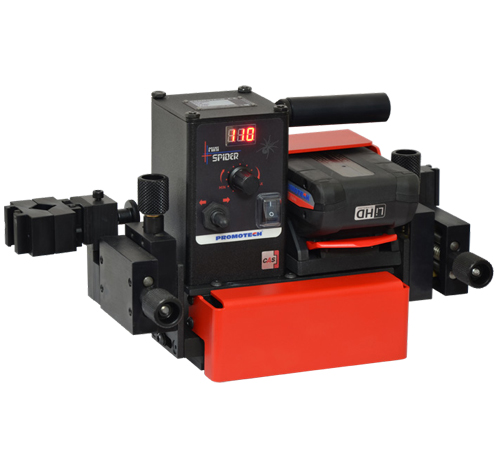

Mini Spider

Mini Spider

FILLET WELDING TRACTOR
Mini Spider is a battery-powered welding tractor designed to produce continuous fillet welds using MIG/MAG torches. The torch can be easily swapped from one side of Mini Spider to another. 4-wheel drive system with magnetic traction and a feedback loop provides highly efficient speed stabilization.

Constant, continuous and repeatable travel speed enables weld bead geometry that is exact to the required specifications, thus reducing costly over welding and substantially decreasing filler metal usage.

  • Compact and lightweight design to weld in narrow spaces
  • Convenient 18 V DC battery supply (the same battery for both Mini Spider and Gecko Battery)
  • Torch placement on either side
  • Welding edge to edge
  • Closed-loop speed control system based on electric motor with encoder – ensures increased speed accuracy
  • Consistent heat input reduces distortion
  • Reduces wasted filler metal – eliminates over welding
  • Digital LED display for presetting of travel speed and diagnostic messages
  • Low-battery indicator
  • Built-in guide rollers
  • Cuts a variety of conductive materials including mild steel, carbon steel, stainless steel, aluminium, copper, brass and other ferrous materials.
  • Straight / bevelled cut.
  • Automated cutting
  • Highly accurate gouging
  • Drilling
  • Sheet metal marking

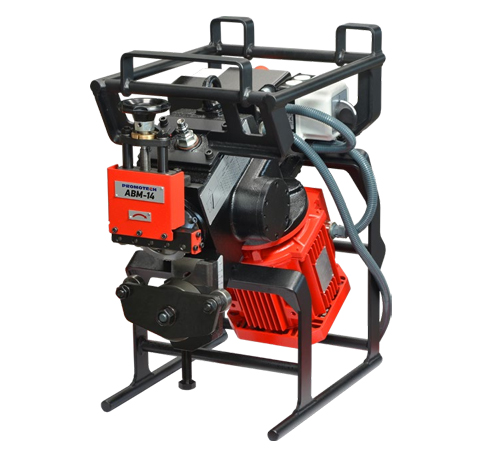

ABM - 14 PLATE AND PIPE BEVELLER

ABM - 14 PLATE AND PIPE BEVELLER

ABM-14 is a beveling machine designed to mill plates and pipes made of carbon steel, alloy steel, stainless steel or aluminum alloys. In just one single run the machine can bevel up to 12 mm (1/2”) width.

Maximum bevel width is 14 mm (9/16’’). Depending on materials two or more runs are needed. The machine can bevel plates from top and bottom. Two optional ergonomic trolleys are available to make operator’s work more effective and comfortable.

Using an additional vertical roller guide ABM-14 can bevel concave edges if curvature radius is 1500 mm or larger.

  • Bvels both small and large pieces to cover most of the common applications for its type
  • Auto feed on large plates with optional trolleys
  • Beveling of lower edge in inverted position
  • Standard shearing cutter for machining stainless/alloyed steel
  • 2 optional shearing cutters dedicated to carbon steel and to aluminum
  • Reversible spindle against stuck milling tool
  • Versatile and transportable on its own trolleys
  • Low noise
  • Possibility to bevel concave edges
  • Cuts a variety of conductive materials including mild steel, carbon steel, stainless steel, aluminium, copper, brass and other ferrous materials.
  • Straight / bevelled cut.
  • Automated cutting
  • Highly accurate gouging
  • Drilling
  • Sheet metal marking
↑
