Outdoor Lighting

PRODUCT MAP

Street Lights
The aesthetics and compact design of the LED street light options available with us at Wipro Lighting, suit the urban architecture well and have a long life and sturdy performance. The Street Light LED options are high on energy saving and offer the right illumination to ensure smooth flow of the traffic

Accessories & Controls

  • In-built integrated electronic LED driver

  • Road Lighting
  • Aesthetics and compact design to suit the urban architecture
  • Best in class efficiency resulting in high energy saving
  • Better thermal management resulting in maintainance free long service life
  • IP66 Construction for a reliable and sturdy performance
  • Aluminium pressure die-cast powder coated housing
  • High efficiency, long life, LEDs
  • High purity PC fresnel diffuser with silicon gaskets for IP66 protection
  • Complete assembly with LED, driver and accessories pre-wired up to terminal block

Electrical & Packaging

Main CodeSystem WattageRated Voltage (V)Mains Current (A)Case lot (in nos.)
LR02-171-XXX-57-XX152400.078
LR02-261-XXX-57-XX202400.098
LR02-291-XXX-57-XX252400.118
LR02-331-XXX-57-XX302400.138

  • Outdoor & Landscape Lighting

Street Lights
The aesthetics and compact design of the LED street light options available with us at Wipro Lighting, suit the urban architecture well and have a long life and sturdy performance. The Street Light LED options are high on energy saving and offer the right illumination to ensure smooth flow of the traffic

Accessories & Controls

  • In-built integrated electronic LED driver

  • Road Lighting
  • Aesthetics and compact design to suit the urban architecture
  • Best in class efficiency resulting in high energy saving
  • Better thermal management resulting in maintainance free long service life
  • IP66 Construction for a reliable and sturdy performance
  • Aluminium pressure die-cast housing parts for long life
  • Pure polyester powder coated dark gray housing
  • High efficiency, long life LEDs
  • Toughened glass with silicon gaskets for IP66 protection
  • Complete assembly with LED, driver and accessories pre-wired up to terminal block
  • Driver cover designed to suit top maintenance

Electrical & Packaging

Main CodeSystem Wattage (W)Rated Voltage (V)Mains Current (A)Case lot (in nos.)
LR02-391-XXX-57-XX352400.152
LR02-451-XXX-57-XX402400.182
LR02-501-XXX-57-XX452400.22
LR02-671-XXX-57-XX602400.261
LR02-781-XXX-57-XX702400.31
LR02-102-XXX-57-XX902400.391
LR02-122-XXX-57-XX1102400.481
LR02-132-XXX-57-XX1202400.531

  • Suitable for external pole dia. up to 60mm
  • 3 Way 10 Amp connector provided for quick connections

Flood Lights
At Wipro Lighting, we take pride in being one of the leading LED Flood Light Manufacturers, providing a vast range of LED luminaires curated for the right purpose. The flood lights available with us save massive 90% energy, have high lumen output, good thermal management, and come in a wide variety of versatile designs. They are ideal for ports, parking lots, construction sites, façades, monuments and industrial outdoors. With our LED flood lights, outdoor areas can be evenly illuminated while saving energy.

  • Area Lighting
  • Energy Efficient : Saving in power Consumption
  • LED floodlight is elegant, architectural and modern in design.
  • Specially designed polycarbonate lenses ensures better light distribution.
  • Virtually maintenance free.
  • Al Die cast Housing, powder coated
  • High efficiency, long life, LEDs
  • High purity polycarbonate lenses for superior performance
  • Toughened glass with silicon gaskets for IP66 Protection
  • Complete assembly with LED, Driver and accessories pre- wired up to terminal block in connector compartment
  • Integral control gear compartment with connector

Electrical & Packaging

Cat No.Mounting ArrangementSystem Wattage (W)Rated Voltage (V)Mains Current (A)Case Lot (Nos.)
LF20-122-060-57-XXCradle Mounted1002400.4301
LF20-132-060-57-XXCradle Mounted1202400.5301
LF20-192-060-57-XXCradle Mounted1502400.6901

  • External cradle adjustable mounting arrangement suitable for mounting with 2 Nos.M8 Or 5/16' bolts.

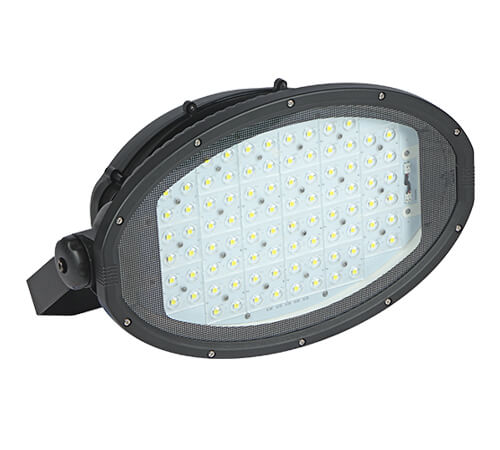

High Performance LED Floodlight with IP66 protection
At Wipro Lighting, we take pride in being one of the leading LED Flood Light Manufacturers, providing a vast range of LED luminaires curated for the right purpose. The flood lights available with us save massive 90% energy, have high lumen output, good thermal management, and come in a wide variety of versatile designs. They are ideal for ports, parking lots, construction sites, façades, monuments and industrial outdoors. With our LED flood lights, outdoor areas can be evenly illuminated while saving energy.

  • Area Lighting
  • Energy Efficient : Saving in power Consumption
  • LED floodlight is elegant, architectural and modern in design.
  • Specially designed polycarbonate lenses ensures better light distribution.
  • Virtually maintenance free.
  • Al Die cast Housing, powder coated
  • High efficiency, long life, LEDs
  • High purity polycarbonate Lenses for superior performance
  • Toughened glass with silicon gaskets for IP66 Protection
  • Complete assembly with LED, Driver and accessories pre- wired up to terminal block in connector compartment
  • Integral control gear compartment with connector

Electrical & Packaging

Cat No.Mounting ArrangementSystem Wattage (W)Rated Voltage (V)Mains Current (A)Case Lot (Nos.)
LF20-272-060-57-XXCradle Mounted2002400.8801
LF20-342-060-57-XXCradle Mounted2502401.1501
LF20-392-060-57-XXCradle Mounted3002401.3501
LF20-442-060-57-XXCradle Mounted3502401.5001

  • External cradle adjustable mounting arrangement suitable for mounting with 2 Nos.M8 Or 5/16' bolts.

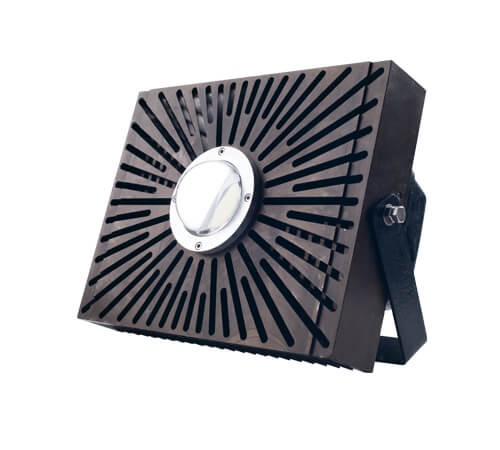

High efficiency LED floodlight
At Wipro Lighting, we take pride in being one of the leading LED Flood Light Manufacturers, providing a vast range of LED luminaires curated for the right purpose. The flood lights available with us save massive 90% energy, have high lumen output, good thermal management, and come in a wide variety of versatile designs. They are ideal for ports, parking lots, construction sites, façades, monuments and industrial outdoors. With our LED flood lights, outdoor areas can be evenly illuminated while saving energy.

Accessories & Controls : In-built electronic LED driver

Installation : Mounting with 2 nos., of bolts on cradle

  • Area Lighting
  • Optical efficiency
  • Versatile design
  • High lumen output
  • Good thermal management
  • High efficiency, long life, Chip On Board (COB) LEDs
  • Pressure die-cast aluminium housing with fins for efficient heat dissipation (150W)
  • Extruded aluminium housing with fins for efficient heat dissipation (180W)
  • Highly efficient, specially designed glass lens optics
  • Constant current LED driver, operating voltage range from 90VAC ~ 305 VAC
  • Operating power factor > 0.95
  • Complete assembly with LED, driver and accessories pre-wired in driver compartment

Electrical & Packaging

Main CodeSystem Wattage (W)Rated Voltage (V)Mains Current (A)Approx Weight (kg)Case lot (in nos.)
LF07-152-060-65-XX1502400.76.21
LF07-152-090-65-XX1502400.76.21
LF07-202-060-65-XX1802400.881
LF07-202-090-65-XX1802400.881

IP 66 LED pathway luminaire
With more savings, exceptional light quality and enhanced architectural design, redefine the outdoors with garden lights from Wipro Lighting. Landscape lighting is becoming increasingly popular because they fulfill several paramount functions vis-à-vis safety, nighttime aesthetics, convenience, accessibility, and recreation. Our LED Garden Lights are designed with high efficacy LM80 compliant LEDs that use a high-efficiency translucence (HET) diffuser for consistent color and superior performance. Specially designed dissipation mechanism ensures effective thermal management for overnight use. It is time to make the outdoors even more beautiful with Spotlight LED from Wipro.

Accessories & Controls:

  • Pole to be ordered separately
  • Pole Dia 76mm

Installation : Pole mounting

  • Landscape Lighting
  • Optical efficiency
  • Versatile design
  • High lumen output
  • Good thermal management
  • High-pressure Die Cast Aluminium alloy body and components.
  • Luminaire is processed with anti-ageing electrostatic spray.
  • Super resistance to corrosion.
  • Polycarbonate cover, high strength impact resistance
  • Conforms to IS 10322 Part 5 / Sec 1 : 1987

Electrical & Packaging

Cat. No.System Wattage (W)Rated Voltage (V)Mains Current (A)Case lot (in nos.)
LP05-711-XXX-57-XX602400.261
LP05-711-XXX-65-XX602400.261

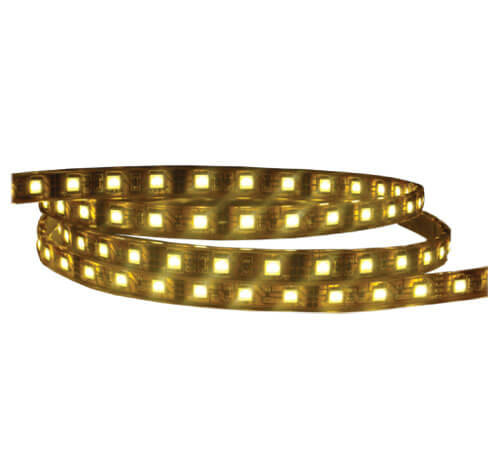

IP 20 and IP 65 non-integral flexible LED strip light
With more savings, exceptional light quality and enhanced architectural design, redefine the outdoors with garden lights from Wipro Lighting. Landscape lighting is becoming increasingly popular because they fulfill several paramount functions vis-à-vis safety, nighttime aesthetics, convenience, accessibility, and recreation. Our LED Garden Lights are designed with high efficacy LM80 compliant LEDs that use a high-efficiency translucence (HET) diffuser for consistent color and superior performance. Specially designed dissipation mechanism ensures effective thermal management for overnight use. It is time to make the outdoors even more beautiful with Spotlight LED from Wipro.

Installation : Designed for installation by adhesive back peel for easy installation

Accessories & Controls:

  • Suitable driver to be ordered separately

  • Offices
  • Software Offices
  • Corporate Offices
  • Banks
  • Retail Spaces
  • Energy efficient
  • No blackening in coves
  • Suits variety of applications
  • Maintenance free
  • High-pressure Die Cast Aluminium alloy body and components.
  • Luminaire is processed with anti-ageing electrostatic spray.
  • Super resistance to corrosion.
  • Polycarbonate cover, high strength impact resistance
  • Conforms to IS 10322 Part 5 / Sec 1 : 1987

Electrical & Packaging

Main CodeIP
LS06-005-120-WH-5020
LS26-005-120-WH-5065
LS06-005-120-WW-5020
LS26-005-120-WW-5065
LS06-005-120-BL-5020
LS26-005-120-BL-5065
LS06-015-120-WH-5020
LS26-015-120-WH-5065
LS06-015-120-WW-5020
LS26-015-120-WW-5065
LS06-015-120-BL-5020
LS26-015-120-BL-5065

IP 67 integral LED bushlight
With more savings, exceptional light quality and enhanced architectural design, redefine the outdoors with garden lights from Wipro Lighting. Landscape lighting is becoming increasingly popular because they fulfill several paramount functions vis-à-vis safety, nighttime aesthetics, convenience, accessibility, and recreation. Our LED Garden Lights are designed with high efficacy LM80 compliant LEDs that use a high-efficiency translucence (HET) diffuser for consistent color and superior performance. Specially designed dissipation mechanism ensures effective thermal management for overnight use. It is time to make the outdoors even more beautiful with Spotlight LED from Wipro.

Installation : Cradle mounting

Accessories & Controls:

  • Directional shield, Wipro Cat No. FFX 511
  • Earth spike in die cast aluminum, Wipro Cat No. FFX 512

  • Landscaping Lighting
  • Die cast aluminum, compact, aesthetic, pure polyester powder coated housing
  • IP 67, optically sealed housing with toughened glass totally sealed using silicon gasket ensuring IP and lifelong performance
  • High efficiency COB LED mounted on black anodised aluminum heat sink for effective heat dissipation
  • Special high efficiency optical grade UV stabilized engineering plastic reflector
  • Available in 10, 24, 36 & 55 deg. beam angle
  • Inbuilt 2 stage, IP 67, CCCV electronic driver with 2kV (DM) surge protection
  • Front maintainable with vandal resistant toughened glass giving access to driver and LED
  • Anti corrosive stainless steel hardware facilitates maintenance
  • Conforms to IS 10322 Part 5/ Sec.1:1987
  • Complete with LEDs and driver pre-wired up to terminal block
  • 2 way 10Amps GFP mains connector

Electrical & Packaging

Main CodeSystem Wattage (W)Rated Voltage (V)Approx Weight (kg)Case lot (in nos.)IP
LF05-450-010-27-XX6240-467
LF05-450-024-27-XX62400.99467
LF05-450-036-27-XX62401.5467
LF05-450-055-27-XX62401.5467
LF05-600-010-27-XX82401.5467
LF05-600-024-27-XX82401.5467
LF05-600-036-27-XX82401.5467
LF05-600-055-27-XX82401.5467

IP 67 integral LED bushlight
With more savings, exceptional light quality and enhanced architectural design, redefine the outdoors with garden lights from Wipro Lighting. Landscape lighting is becoming increasingly popular because they fulfill several paramount functions vis-à-vis safety, nighttime aesthetics, convenience, accessibility, and recreation. Our LED Garden Lights are designed with high efficacy LM80 compliant LEDs that use a high-efficiency translucence (HET) diffuser for consistent color and superior performance. Specially designed dissipation mechanism ensures effective thermal management for overnight use. It is time to make the outdoors even more beautiful with Spotlight LED from Wipro.

  • Landscaping Lighting
  • Aesthetic Design
  • Uniform Lighting
  • High Efficacy
  • Die cast Aluminum housing in Pure Polyster UV resistant powder coated grey finish.
  • Top maintainable product with top opening die cast cover
  • Anti-corrosive stainless steel screws & silicon gasket
  • HET PMMA diffuser
  • IP65 Protection.
  • Driver duly wired up to terminal block.
  • Conforms to IS 10322 Part 5 / Sec 1 : 1987

Electrical & Packaging

Main CodeSystem Wattage (W)Rated Voltage (V)Mains Current (A)Case lot (in nos.)
LP02-501-XXX-57-XX452400.21

  • Luminaire is suitable for pole diameter of
  • 65-75 mm. (Pole is not in Wipro's scope)
  • Cable entry through pole from bottom.
  • In- built electronic LED driver.
  • 2 way 10Amps GFP mains connector

LED Bollard light suitable for landscape lighting
With more savings, exceptional light quality and enhanced architectural design, redefine the outdoors with garden lights from Wipro Lighting. Landscape lighting is becoming increasingly popular because they fulfill several paramount functions vis-à-vis safety, nighttime aesthetics, convenience, accessibility, and recreation. Our LED Garden Lights are designed with high efficacy LM80 compliant LEDs that use a high-efficiency translucence (HET) diffuser for consistent color and superior performance. Specially designed dissipation mechanism ensures effective thermal management for overnight use. It is time to make the outdoors even more beautiful with Spotlight LED from Wipro.

  • Landscaping Lighting
  • MS housing 2mm wall thickness & Black matt powder coated
  • Special translucent PMMA milky tube for better Light Transmission
  • High Luminous Flux imported LEDs for better light output
  • Product is designed for IP 65 protection
  • Electronic control gear duly wired up to the terminal block
  • Designed and manufactured to comply with IS 10322 part 5/Sec 1 1987

Electrical & Packaging

Main CodeSystem Wattage (W)Rated Voltage (V)Mains Current (A)Approx Weight (kg)Case lot (in nos.)IP
CRLA11008HP27-0882400.0373165
CRLA11008HP57-0882400.0373165
CRLA11008HP27-0582400.0372165
CRLA11008HP57-0582400.0372165

  • Designed to install directly on wall with the help of 4 screws

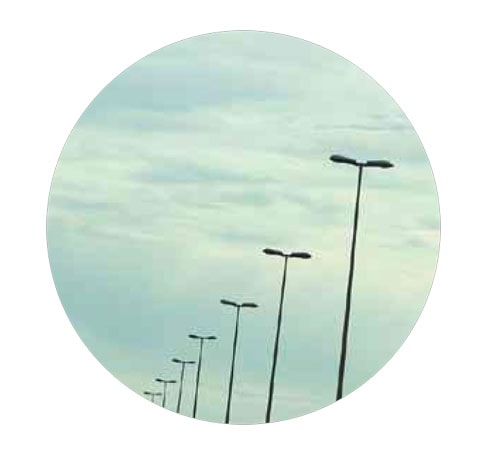

Poles are the backbone of efficient street lighting applications and urban city beautification projects. Wipro Lighting offers a wide range of products right from 5m-12m poles with different bracket options. Town planners and urban developers today require poles which blend with modern city landscapes and provide a distinguished look to the area.

SWAGED POLES / TUBULAR POLES
Swaged poles are the most popular streetlighting poles, even today. We offer the entire range of these poles with specifications confirming to IS2712: Part II.

DECORATIVE POLES
This category of poles is the favourite of all designers. We offer a wide variety of customized options to suit your design creations. Please contact our lighting experts to explore more on this range.

OCTAGONAL POLES / CONICAL POLES
Modern octagonal poles are sleek, elegant and aesthetic. They provide a low maintenance, long life solutions for streetlighting applications.

  • Street Lighting
  • Industrial approach ways
  • Large educational and service campus

General Specifications

Sr.NoPoles
(in mtr.)
Top Dia
(in mm)
Bottom Dia
(in mm)
Thickness
(in mm)
Base plate
(in mm)
Single Arm Bracket
(in mm)
Double Arm Bracket
(in mm)
1.3701303200x200x121000NA
2.3701303200x200x12NA1000
3.4701303200x200x121000NA
4.4701303200x200x12NA1000
5.4701303200x200x121000NA
6.5701303200x200x12NA1000
7.5701303200x200x121000NA
8.6701303200x200x12NA1000
8.6701303200x200x121000NA
9.7701353225x225x161000NA
10.7701353225x225x16NA1000
11.8701353225x225x161000NA
12.8701353225x225x16NA1000
13.9701553260x260x161000NA
14.9701553260x260x16NA1000
15.9701753275x275x161000NA
16.9701753275x275x16NA1000
17.10701753275x275x161000NA
18.10701753275x275x16NA1000
19.10702003290x290x161000NA
20.10702003290x290x16NA1000
21.11702103320x320x201000NA
22.11702103320x320x20NA1000
23.12702303325x325x201000NA
24.12702303325x325x20NA1000

  • Designed to install directly on wall with the help of 4 screws

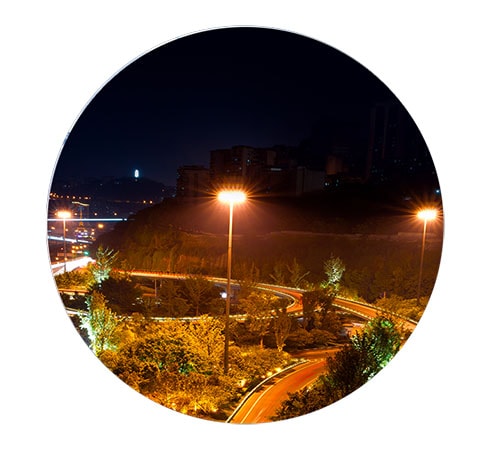

High Mast lighting is currently the most efficient and cost effective way of illuminating large outdoor areas such as highways, railway yards, dock yards, parking lots, shopping centers, power plants, coal mines, warehouses, toll plazas and road junctions.

High Masts can be mounted at considerable heights, thus rendering uniform illumination to the entire area. It also enables easier installation and maintenance of luminaires due to motorized controls that lowers and raises the luminaires. The sleek high masts lighting is also aesthetically superior to the conventional lattice structures or lower height poles.

Wipro Lighting offers comprehensive range of solutions in High Masts. The range is available in standard heights,12/16/20/25/30 metres. All these options support various luminaire combinations depending on lighting design requirements.

  • High Mast Assembly
    The assembly is housed in a chassis and is secured axially. The pulley is made of non corrosive material and runs on self-lubricating bearings with stainless steel spindles. This complete assembly is hot dip galvanized.
  • Wintches
    The double drum winch driven by a single speed reversible power tool is a self sustaining mechanism which does not get affected by weather or moisture. It is designed as a self lubricating winch by using oil bath.
  • Lantern Carriages
    The lantern carriage is made of durable steel tube and serves the dual purpose of carrying luminaires as well as acts as an electrical conduit. It is provided with rubber gaskets internally which allows easy movement and avoids scratches on the Mast surface?during movement.
  • Accessories
    Flexible marine grade stainless steel wire ropes (AISI SS316) are used in 7/19 construction in the Mast assembly. Accessories like trailing cable, cable connections, lightning arrester, power tool, feeder pillar box and aviation obstruction luminaire are provided with the Mast.
  • Large Outdoor areas
  • Key junctions of roads

General Specifications

Sr.NoHigh Mast Height
(in mtr.)
Bottom Dia
(in mm)
Top Dia
(in mm)
Thickness
(in mm)
Base plate
(in mm)
1.121503103445 x 25
2.121503603520 x 25
3.12.51501503445 x 25
4.12.51503603520 x 25
5.161503604,3520 x 25
6.161504604,3670x25
7.201504104,3570x25
8.201504604,3670x25
9.251504605,4,3670x30
10.251505105,4,3730x32
11.251505405,4,3730x32
12.301505405,4,3730x32
13.301506106,4,4840 x 32
14.301506106,5,4840 x 32

  • Designed to install directly on wall with the help of 4 screws
