Welding Fume Exhaust Arms And Fans

PRODUCT MAP

Welding Smoke Extraction Arm - 2-4 m

Welding Smoke Extraction Arm - 2-4 m

The KEMPER air dust extraction arm is used for a single work station in conjunction with a fan or for multi-user stations using ducting connected to a central extraction and filter unit. The extraction arm is designed for continuous use and is suitable for high levels of fume, smoke and dust such as welding fumes, gases, vapours, light dusts or motor vehicle exhaust fumes.

Variants

  • 2 m Arm, flexible exhaust arm
  • 3 m Arm, flexible exhaust arm
  • 4 m Arm, flexible exhaust arm
  • 2 m Arm, rigid metal tube arm
  • 3 m Arm, rigid metal tube arm
  • 4 m Arm, rigid metal tube arm
Accessories
  • 360 degrees rotating exhaust hood with damper
  • Self-supported by internal springs

  • For connection to fans or central extraction systems
  • High levels of smoke and dust
  • Non-stop operation
  • Welding fumes, gases, vapours, light dusts, car exhaust fumes
  • Fast operation due to particularly flexible adjustment
  • 40% less adjustment of the exhaust arm needed due to exhaust hood design
  • User-friendly due to particularly smooth movement of the hood with one hand
  • Arm keeps position due to self-supporting design
  • Due to its easy movement, the exhaust arm can be brought into any permanent position with one hand
  • Various options to connect the exhaust arms to fans, stationary devices or via duct work to central extraction and filtration systems
  • 360 degrees rotating exhaust hood with damper
  • Self-supported by internal springs

Welding Fume Exhaust Arms - 5 - 7 m

Welding Fume Exhaust Arms - 5 - 7 m

KEMPER exhaust arms unite high flexibility with ergonomic and safe workplace design. They can be used to extract welding smoke, gases and vapours as well as light dusts or solvents. With arms extending up to 6 meters, they are suitable for many different environments.

Variants

  • 5 m Arm, flexible exhaust arm
  • 6 m Arm, flexible exhaust arm
  • 7 m Arm, flexible exhaust arm
  • 5 m Arm, rigid metal tube arm
  • 6 m Arm, rigid metal tube arm
  • 7 m Arm, rigid metal tube arm
Accessories
  • Replacement hood - Lighting kit incl. Exhaust hood, 2 x 5 W LED lights, Trafo-Box (original fitted)

  • For connection to fans or central extraction systems
  • High levels of smoke and dust
  • Non-stop operation
  • Welding fumes, gases, vapours, light dusts, car exhaust fumes
  • Large workpieces
  • Reduced tripping hazard by attaching tools or wire feed unit to the boom with carriage
  • 40% less adjustment of the exhaust arm needed due to exhaust hood design
  • User-friendly due to particularly smooth movement of the hood with one hand
  • Arm keeps position due to self-supporting design
  • Due to its easy movement, the exhaust arm can be brought into any permanent position with one hand
  • Fast operation due to long reach and particularly flexible adjustment
  • Various options to connect the exhaust arms to fans, stationary devices or via duct work to central extraction and filtration systems
  • 360 degrees rotating exhaust hood with damper
  • Self-supported by internal springs
  • Boom with 50 kg load capacity
  • Boom with integrated C-rail with carriage

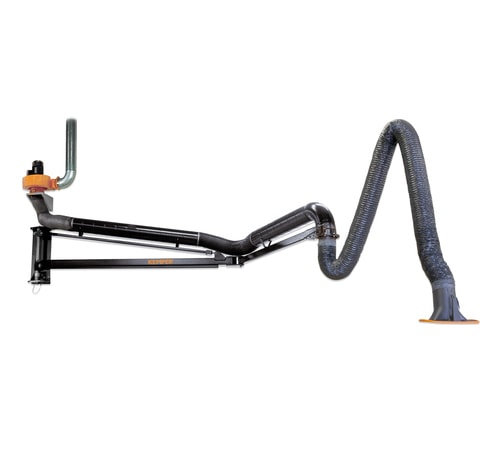

Welding Fume Exhaust Arms - 7 - 8 m

Welding Fume Exhaust Arms - 7 - 8 m

The KEMPER extraction arm permits a long reach. It is used either for a single work station in conjunction with a fan or for multi-user stations using tubes connected to a central extraction and filter system. The exhaust arm is designed for continuous use and is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or motor vehicle exhaust fumes.

Variants

  • 7 m Arm, flexible exhaust arm
  • 8 m Arm, flexible exhaust arm
  • 7 m Arm, rigid metal tube arm
  • 8 m Arm, rigid metal tube arm
Accessories
  • Various arm lengths and versions

  • For connection to fans or central extraction systems
  • High levels of smoke and dust
  • Non-stop operation
  • Welding fumes, gases, vapours, light dusts, car exhaust fumes
  • Large workpieces
  • Reduced tripping hazard by attaching tools or wire feed unit to the boom with carriage
  • 40% less adjustment of the exhaust arm needed due to exhaust hood design
  • User-friendly due to particularly smooth movement of the hood with one hand
  • Arm keeps position due to self-supporting design
  • Due to its easy movement, the exhaust arm can be brought into any permanent position with one hand
  • Fast operation due to long reach and particularly flexible adjustment
  • Various options to connect the exhaust arms to fans, stationary devices or via duct work to central extraction and filtration systems
  • 360 degrees rotating exhaust hood with damper
  • Self-supported by internal springs
  • Boom with 50 kg load capacity
  • Boom with integrated C-rail with carriage

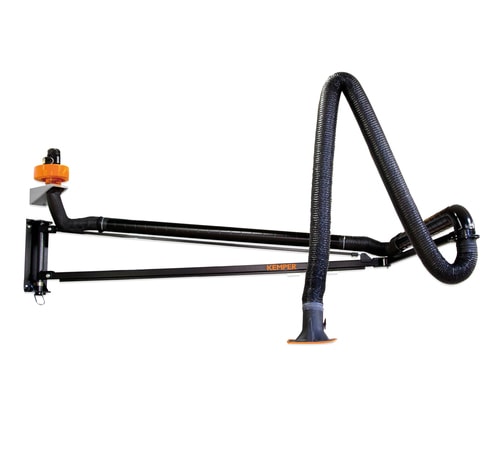

Welding Fume Exhaust Arms - 9 - 10 m

Welding Fume Exhaust Arms - 9 - 10 m

The KEMPER extraction arm permits a long reach. It is used either for a single work station in conjunction with a fan or for multi-user stations using tubes connected to a central extraction and filter system. The exhaust arm is designed for continuous use and is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or motor vehicle exhaust fumes.

Variants

  • 9 m Arm, flexible exhaust arm
  • 10 m Arm, flexible exhaust arm
  • 9 m Arm, rigid metal tube arm
  • 10 m Arm, rigid metal tube arm
Accessories
  • Various arm lengths and versions

  • For connection to fans or central extraction systems
  • High levels of smoke and dust
  • Non-stop operation
  • Welding fumes, gases, vapours, light dusts, car exhaust fumes
  • Large workpieces
  • Reduced tripping hazard by attaching tools or wire feed unit to the boom with carriage
  • 40% less adjustment of the exhaust arm needed due to exhaust hood design
  • User-friendly due to particularly smooth movement of the hood with one hand
  • Arm keeps position due to self-supporting design
  • Due to its easy movement, the exhaust arm can be brought into any permanent position with one hand
  • Fast operation due to long reach and particularly flexible adjustment
  • Various options to connect the exhaust arms to fans, stationary devices or via duct work to central extraction and filtration systems
  • 360 degrees rotating exhaust hood with damper
  • Self-supported by internal springs
  • Boom with 50 kg load capacity
  • Boom with integrated C-rail with carriage

Telescopic Welding Fume Extraction Arm

Fume Extraction Arm

The telescopic arm is connected by tubes to a central extraction and filter system. It is installed in confined booths or rooms with little space and is designed for continuous use. The telescopic arm is suitable for large amounts of smoke and dust such as welding fumes, gases, vapours or light dusts.

Variants

  • 1.5 m Arm
  • 2 m Arm
Accessories
  • Lighting in the hood

  • For welding booths and welding training stations
  • High levels of smoke and dust
  • Non-stop operation
  • For small, confined booths and limited workspace
  • Welding fumes, gases, vapours, light dusts
  • 40% less adjustment of the exhaust arm needed due to exhaust hood design
  • Arm keeps position due to self-supporting design
  • Suitable for confined spaces, as extraction arm is telescopic
  • Polyester fabric hose, PVC coated with welded steel wire spiral
  • 360 degrees rotating exhaust hood with damper

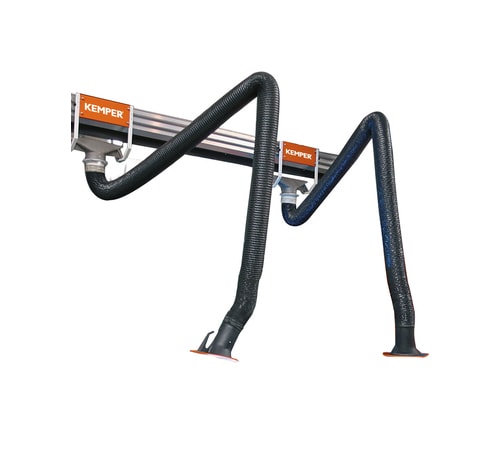

Welding Smoke Exhaust Arms For Suction Channel

Exhaust Arms For Suction Channel

Exhaust arms on the extraction channel combined long reach with very simple and smooth positioning. Several exhaust arms can be connected to one duct. The exhaust arms are designed for continuous use and are suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or motor vehicle exhaust fumes.

Variants

  • 2 m Arm
  • 3 m Arm
  • 4 m Arm
Accessories
  • Connecting material - Set of connecting material Ø160 mm
  • Connection piece at top side, Ø 160 mm - Connection piece at top side, Ø 160 mm
  • Connecting pipe - Connecting pipe Ø 160 mm
  • Extraction rail channel, 3,0 m - Extraction rail channel, 3,0 m
  • Complete lighting set, 2 x 12 V, 70 W, for units with one exhaust arm or fans in combination with an automatic start-stop, incl. on/off switch on the exhaust hood - Complete lighting set, 2 x 12 V, 70 W, for units with one exhaust arm or fans in combination with an automatic start-stop, incl. on/off switch on the exhaust hood
  • Lighting set for KEMPER exhaust hood, 2 x 12 V – 70 W, including transformer box - Lighting set for KEMPER exhaust hood, 2 x 12 V – 70 W, including transformer box
  • End cap for slotted suction rail - End cap for rail channel

  • For connection to fans or central extraction systems
  • High levels of smoke and dust
  • Non-stop operation
  • Welding fumes, gases, vapours, light dusts, car exhaust fumes
  • Large workpieces
  • Fast operation due to long reach and particularly flexible adjustment of the exhaust arm by 360 degrees below the carriage
  • Easy adjustment of the carriage due to eight ball bearing plastic castors
  • 40% less adjustment of the exhaust arm needed due to exhaust hood design
  • User-friendly due to particularly smooth movement of the hood with one hand
  • Arm keeps position due to self-supporting design
  • Polyester fabric hose, PVC coated with welded steel wire spiral
  • 360 degrees rotating exhaust hood with damper
  • Roller unit with ball bearing plastic castors

Welding Smoke Exhaust Arm Upright - Suspended

Exhaust Arm Upright - Suspended

The KEMPER exhaust arm is suitable for retrofitting to existing equipment, on work tables or other extraction devices. It is designed for continuous use and is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or motor vehicle exhaust fumes.

Variants

  • 2 m Arm, suspended installation
  • 3 m Arm, suspended installation
  • 4 m Arm, suspended installation
  • 2 m Arm, upright installation
  • 3 m Arm, upright installation
  • 4 m Arm, upright installation
Accessories
  • Replacement hood - Lighting kit incl. Exhaust hood, 2 x 5 W LED lights, Trafo-Box (original fitted)

  • For existing devices
  • Non-stop operation
  • On work tables
  • On extraction devices
  • Welding fumes, gases, vapours, light dusts
  • Fast operation due to particularly flexible adjustment
  • 40% less adjustment of the exhaust arm needed due to exhaust hood design
  • User-friendly due to particularly smooth movement of the hood with one hand
  • Arm keeps position due to self-supporting design
  • Polyester fabric hose, PVC coated with welded steel wire spiral
  • 360 degrees rotating exhaust hood with damper

Welding Fume Exhaust Set

Welding Fume Exhaust Set

The welding fume exhaust kit consisting of exhaust arm and fan is a particularly simple and cost-effective solution anywhere where air filtration is not essential. It is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or vehicle exhaust fumes in non-stop operation.

Variants

  • 2 m Arm, flexible exhaust arm
  • 3 m Arm, flexible exhaust arm
  • 4 m Arm, flexible exhaust arm
  • 2 m Arm, rigid metal tube arm
  • 3 m Arm, rigid metal tube arm
  • 4 m Arm, rigid metal tube arm

  • High levels of smoke and dust
  • Non-stop operation
  • Where filtration is not essential
  • Welding fumes, gases, vapours, light dusts, car exhaust fumes
  • Very quiet due to housing of cast silumin
  • 40% less adjustment of the exhaust arm needed due to exhaust hood design
  • User-friendly due to particularly smooth movement of the hood with one hand
  • Arm keeps position due to self-supporting design
  • 360 degrees rotating exhaust hood with damper
  • Self-supported by internal springs
  • As a flexible exhaust arm: Polyester fabric hose, PVC coated with welded steel wire spiral
  • As a rigid metal tube arm: Powder-coated aluminum tube, three flexible hose sections
  • Fan made of spark-proof cast silumin

Welding Fume Exhaust Set 2 Joints

Welding Fume Exhaust Set 2 Joints

The welding fume exhaust kit consisting of boom, exhaust arm and fan is a particularly simple and cost-effective solution anywhere where air filtration is not essential. Due to the length, flexible, fast work is very easy, even with large workpieces. It is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or vehicle exhaust fumes in non-stop operation

Variants

  • 5 m Arm, flexible exhaust arm
  • 6 m Arm, flexible exhaust arm
  • 7 m Arm, flexible exhaust arm
  • 5 m Arm, rigid metal tube arm
  • 6 m Arm, rigid metal tube arm
  • 7 m Arm, rigid metal tube arm

  • High levels of smoke and dust
  • Non-stop operation
  • Where filtration is not essential
  • Welding fumes, gases, vapours, light dusts, car exhaust fumes
  • Reduced tripping hazard by attaching tools or wire feed unit to the boom with carriage
  • Very quiet due to housing of cast silumin
  • 40% less adjustment of the exhaust arm needed due to exhaust hood design
  • User-friendly due to particularly smooth movement of the hood with one hand
  • Arm keeps position due to self-supporting design
  • Flexible, fast work due to long reach
  • 360 degrees rotating exhaust hood with damper
  • Self-supported by internal springs
  • As a flexible exhaust arm: Polyester fabric hose, PVC coated with welded steel wire spiral
  • As a rigid metal tube arm: Powder-coated aluminum tube, three flexible hose sections
  • Fan made of spark-proof cast silumin
  • Boom with 50 kg load capacity
  • Boom with integrated C-rail with carriage

Welding Fume Exhaust Set 3 Joints

Welding Fume Exhaust Set 3 Joints

The welding fume exhaust kit consisting of boom, exhaust arm and fan is a particularly simple and cost-effective solution anywhere where air filtration is not essential. Due to the length, flexible, fast work is very easy, even with large workpieces. It is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or vehicle exhaust fumes in non-stop operation.

Variants

  • 7 m Arm, flexible exhaust arm
  • 8 m Arm, flexible exhaust arm
  • 7 m Arm, rigid metal tube arm
  • 8 m Arm, rigid metal tube arm

  • High levels of smoke and dust
  • Non-stop operation
  • Where filtration is not essential
  • Welding fumes, gases, vapours, light dusts, car exhaust fumes
  • Large workpieces
  • Reduced tripping hazard by attaching tools or wire feed unit to the boom with carriage
  • Very quiet due to housing of cast silumin
  • 40% less adjustment of the exhaust arm needed due to exhaust hood design
  • User-friendly due to particularly smooth movement of the hood with one hand
  • Arm keeps position due to self-supporting design
  • Flexible, fast work due to long reach
  • 360 degrees rotating exhaust hood with damper
  • Self-supported by internal springs
  • As a flexible exhaust arm: Polyester fabric hose, PVC coated with welded steel wire spiral
  • As a rigid metal tube arm: Powder-coated aluminum tube, three flexible hose sections
  • Fan made of spark-proof cast silumin
  • Boom with 50 kg load capacity
  • Boom with integrated C-rail with carriage

Welding Fume Exhaust Set 9-10m 3 Joints

Welding Fume Exhaust Set 9-10m 3 Joints

The welding fume exhaust kit consisting of boom, exhaust arm and fan is a particularly simple and cost-effective solution anywhere where air filtration is not essential. Due to the length, flexible, fast work is very easy, even with large workpieces. It is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or vehicle exhaust fumes in non-stop operation.

Variants

  • 9 m Arm, flexible exhaust arm
  • 10 m Arm, flexible exhaust arm
  • 9 m Arm, rigid metal tube arm
  • 10 m Arm, rigid metal tube arm

  • High levels of smoke and dust
  • Non-stop operation
  • Where filtration is not essential
  • Welding fumes, gases, vapours, light dusts, car exhaust fumes
  • Large workpieces
  • Very quiet due to housing of cast silumin
  • 40% less adjustment of the exhaust arm needed due to exhaust hood design
  • User-friendly due to particularly smooth movement of the hood with one hand
  • Arm keeps position due to self-supporting design
  • Flexible, fast work due to long reach
  • Reduced tripping hazard by attaching tools or wire feed unit to the boom with carriage
  • 360 degrees rotating exhaust hood with damper
  • Self-supported by internal springs
  • As a flexible exhaust arm: Polyester fabric hose, PVC coated with welded steel wire spiral
  • As a rigid metal tube arm: Powder-coated aluminum tube, three flexible hose sections
  • Fan made of spark-proof cast silumin
  • Boom with 50 kg load capacity
  • Boom with integrated C-rail with carriage

Exhaust Fans - up to 2.200 m3/h

Exhaust Fans - up to 2.200 m<sup>3</sup>/h

Fans are used in combination with duct on KEMPER welding smoke exhaust arms, telescopic arms and suction hoses. They are used for venting or ventilation wherever filtering the air is not important. Due to the cast silumin housing the fan is particularly quiet and spark-proof.

Variants

  • Capacity 1,000m³/h, 0,55kW-3x400V
  • Capacity 1,000m³/h, 0,55kW-1x230V
  • Capacity 1,000m³/h, 0,55kW-3x500V
  • Capacity 2,000m³/h, 0,75kW-3x400V
  • Capacity 2,000m³/h, 0,75kW-1x230V
  • Capacity 2,000m³/h, 0,75kW-3x500V
  • Capacity 2,200m³/h, 1,1kW-3x400V
  • Capacity 2,200m³/h, 1,1kW-3x500V
  • Capacity 2,000 m³/h - 1,1 kW - 1 x 230 V

  • For exhaust arms, telescopic arms and suction hoses
  • High levels of smoke and dust
  • Non-stop operation
  • Very quiet and spark-proof due to cast silumin housing
  • Housing and fan of castsilumin

Exhaust Fans - up to 3.000 m3/h

Exhaust Fans - up to 3.000 m<sup>3</sup>/h

Fans are used in combination with duct on KEMPER welding smoke exhaust arms, telescopic arms and suction hoses. They are used for venting or ventilation wherever filtering the air is not important. Due to the cast silumin housing the fan is particularly quiet and spark-proof.

Variants

  • Capacity 3,000m3/h, 1,50kW-3x400V
  • Capacity 3,000m3/h, 1,50kW-3x500V
  • Capacity 3,000m3/h, 1,50kW-1x230V

  • For exhaust arms, telescopic arms and suction hoses
  • High levels of smoke and dust
  • Non-stop operation
  • Very quiet and spark-proof due to cast silumin housing
  • Housing and fan of castsilumin

Central Fan

Central Fan

Central fans are the ideal solution when large amounts of air need to be moved. They are put to use in combination with duct on welding fume extraction tables, hoods and arms. Fans are used everywhere to vent where filtering the air is not important.

Variants

  • Extraction capacity 2,000-4,000m3/h
  • Extraction capacity 3,000-5,000m3/h
  • Extraction capacity 4,000-7,000m3/h
  • Extraction capacity 6,000-9,000m3/h
  • Extraction capacity 6,000-10,000m3/h

  • For extraction tables, extraction hoods and extraction arms
  • High levels of smoke and dust
  • Non-stop operation
  • Low investment costs because extraction takes place without air filtration
  • Galvanised steel sheet construction
  • Different performance classes

Welding Smoke Exhaust Fan L

Welding Smoke Exhaust Fan L

A universal, mobile solution for a variety of ventilation applications where filtering the air is not important. It is extremely quiet and is suitable for the extraction of e.g. welding fumes or car exhaust gases as well as for the fresh air ventilation of containers, pipes or manholes.

Variants

  • 3 x 400V / 50 Hz
  • 1 x 230V / 50 Hz

  • High levels of smoke and dust
  • Non-stop operation
  • For ventilation and extraction
  • High flexibility since blower can be used both for ventilation and extraction
  • Very quiet and spark-proof due to cast silumin housing
  • Suitable for use on construction sites due to robust construction
  • Housing and fan of cast silumin
  • Portable and mobile

Welding Smoke Exhaust Fan XL

Welding Smoke Exhaust Fan XL

A universal, mobile solution for a variety of ventilation applications where filtering the air is not important. It is extremely quiet and is suitable for the extraction of e.g. welding fumes or car exhaust gases as well as for the fresh air ventilation of containers, pipes or manholes.

Variants

  • 3 x 400V / 50 Hz
  • 1 x 230V / 50 Hz

  • High levels of smoke and dust
  • Non-stop operation
  • For ventilation and extraction
  • High flexibility since blower can be used both for ventilation and extraction
  • Very quiet and spark-proof due to cast silumin housing
  • Suitable for use on construction sites due to robust construction
  • Housing and fan of cast silumin
  • Portable and mobile
↑
