Extraction And Cutting Tables

PRODUCT MAP

Grinding Tables

Grinding Tables

Our grinding table with downdraft and rear wall spark and air fume extraction is a clean and safe solution for industrial use. The grinding table can be connected to a central air extraction system and the table is available in different sizes. The sound-insulated side walls can be folded away when machining large workpieces.

Variants

  • (W x D x H): 1,010 x 1,060 x 1,700 mm
  • (W x D x H): 1,360 x 1,060 x 1,700 mm
  • (W x D x H): 1,510 x 1,060 x 1,700 mm
  • (W x D x H): 2,000 x 1,060 x 1,700 mm

  • Industrial grinding of machined workpieces
  • Safe working due to robust material support
  • Side walls can be folded away so also suitable for larger workpieces
  • Reduced noise levels due to soundproofed side walls
  • Higher degree of grinding dust capture due to the rear wall extraction
  • Easy cleaning thanks to the integrated slag tray
  • Comfortable to work with thanks to the ergonomically adapted sheet steel construction
  • Robust grid-type material support
  • Side walls can be folded down
  • Side walls with sound insulation material
  • Rear wall extraction
  • Integrated slag tray
  • Connection and integration into an existing extraction system

Welding Fume Extraction Tables

Welding Fume Extraction Tables

Welding Tables from KEMPER are the ideal solution for welding together of small metal parts by hand. A slag tray allows for easy cleaning of the table and the table is connected to an extraction system via pipework. Extraction can also be carried out via an optional fan.

Variants

  • (W x D x H) 1.000 x 800 x 850 mm
  • (W x D x H) 1,500 x 800 x 850 mm
  • (W x D x H) 2,000 x 800 x 850 mm

  • Manual working on small metal parts
  • Safe working due to robust material support
  • Easy cleaning thanks to the integrated slag tray
  • Comfortable to work with thanks to ergonomically adapted sheet steel construction
  • Robust grid-type material support
  • Integrated slag tray
  • Welded, ergonomically adapted sheet steel construction
  • Can be connected to filtration system or fan

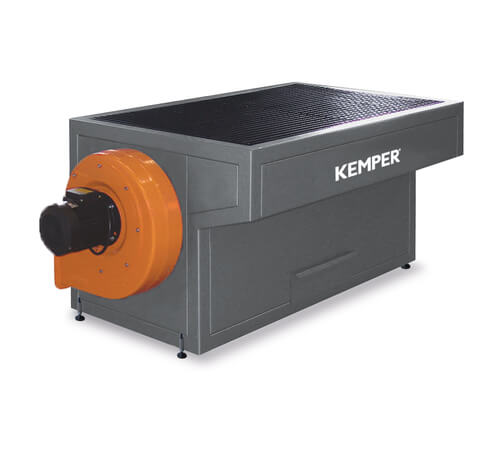

Welding Fume Extraction Tables With Fan

Welding Fume Extraction Tables With Fan

Welding Tables from KEMPER are the ideal solution for welders for connecting small metal steel parts by hand. A slag tray allows for easy cleaning of the welding table. The extraction is carried out by means of a fan that is mounted externally on the table.

Variants

  • (W x D x H) 1,000 x 800 x 850 mm
  • (W x D x H) 1,500 x 800 x 850 mm
  • (W x D x H) 2,000 x 800 x 850 mm

  • Manual working on small metal parts
  • Safe working due to robust material support
  • Direct extraction of the contaminated air by the attached fan
  • Easy cleaning thanks to the integrated slag tray
  • Comfortable to work with thanks to ergonomically adapted sheet steel construction
  • Robust grid-type material support
  • Integrated slag tray
  • Welded, ergonomically adapted sheet steel construction
  • External cast silumin fan

Hand Cutting Table

Hand Cutting Table

The KEMPER hand cutting table is ideal for machining small metal parts by hand. The integrated slag tray allows for easy cleaning of the table.

Variants

  • (W x D x H) 800 x 800 x 800 mm
  • (W x D x H) 1,108 x 800 x 800 mm

  • Manual working on small metal parts
  • Safe working due to robust material support
  • Easy cleaning thanks to the integrated slag tray
  • Connection spigot 160 mm
  • Robust material support fabricated of flat steel
  • Integrated slag tray
  • For connection to central extraction and filtering systems

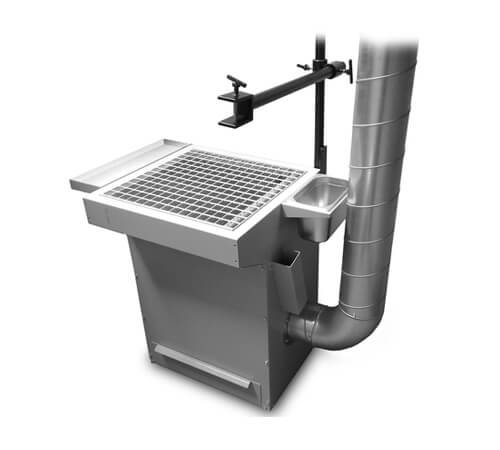

Hand Cutting Extraction Table With Fixture

Hand Cutting Extraction Table With Fixture

The KEMPER Tavolextisch is specifically designed for hand cutting training in schools and workshops. The flamecutter can be held in the clamp so that the operator has both hands free. Simple cleaning of the table is ensured by the large slag drawer.

Variants

  • (W x D x H) 1,000 x 850 x 800 mm
  • (W x D x H) 1,500 x 850 x 800 mm
  • (W x D x H) 1,050 x 850 x 800 mm

  • Gas cutting by hand
  • Apprenticeship, research and training centres
  • Educational departments in companies
  • Both hands are free to work thanks to the foot-operated mechanism for clamping the workpiece
  • Safe working due to robust material support
  • Easy cleaning thanks to the integrated slag tray
  • Comfortable to work with thanks to ergonomically adapted sheet steel construction
  • Workpiece clamping device with foot-operated mechanism for holding gas cutting equipment
  • Integrated slag tray
  • Suitable for connection to central extraction and filtering systems
  • Robust steel plate construction

Welding Training Tables without drawer

Welding Training Tables without drawer

KEMPER training welding tables are designed for training welders. Flat and deep welding techniques are taught at the tables which are divided into two distinct work areas.

Variants

  • (W x D x H): 600 x 600 x 800 mm, without drawer
  • (W x D x H): 900 x 600 x 800mm, without drawer
  • (W x D x H): 1,200 x 600 x 800mm, without drawer
  • (W x D x H): 600 x 600 x 800 mm, with drawer
  • (W x D x H): 600 x 900 x 800 mm, with drawer
  • (W x D x H): 600 x 1,200 x 800 mm, with drawer
Accessories
  • Forced position welding fixture

  • Flat and deep welding
  • Apprenticeship and training centres
  • Educational departments in companies
  • Due to the division of the work surface, two welding processes can be practiced at one workplace
  • Durable due to robust steel construction
  • Robust steel profile construction
  • Two-section work surface: iron bar grating and sheet steel support surface with refractory material
  • Can be integtared into KEMPER extraction booths

Training table with Forced position welding fixture

Forced position welding fixture

The Training table with forced position welding fixture best suited for all welding equipment.

Scope of supply

  • Robust welded steel construction
  • Water container
  • Electrode quiver
  • Tool tray
  • Forced position welding fixture

  • For existing devices
  • Non-stop operation
  • On work tables
  • On extraction devices
  • Welding fumes, gases, vapours, light dusts
  • Durable due to robust steel construction
  • Easy cleaning thanks to the integrated slag tray
  • Connection spigot 160 mm
  • Robust steel construction
  • Can be integtared into KEMPER extraction booths
  • Integrated slag tray
  • For connection to central extraction and filtering systems

KemTab Basic Extraction Table

KemTab Basic Extraction Table

The basic model for most cutting applications: The KemTab Basic is suitable for cutting current of up to 150 A and materials up to 75 mm thick. Thanks to the large slag trays, the table can be cleaned easily and at greater cleaning intervals.

Variants

  • Various table widths and lengths

  • For plasma cutting up to 150 amps (short peaks 250 A)
  • For gas cutting with sheet metal up to 75 mm thick
  • Better cut quality and less wear due to innovative design of the material support easyFRAME
  • No external follow-up costs caused by in-house production of wear parts due to easyFRAME
  • No cleaning or maintenance required on the material support as it can be easily replaced (easyFRAME)
  • Energy cost savings due to low extraction volume thanks to individual control of the extraction dampers of the segment in use
  • Time and cost savings when cleaning the table due to large slag trays and thus longer cleaning intervals
  • Flexible table size design due to modular system (length, width)
  • Low extraction volume
  • easyFRAME material support
  • Large slag trays
  • Mechanical control of the extraction damper in the individual table segments
  • Modular design
Module widths 1.100 mm, 1.600 mm, 2.100 mm, 2.600 mm, 3.100 mm
Working height 800 mm
Table height 700 mm
Segment distance 515 mm
Material support frame EasyFrame Basic

KemTab Advance Extraction Table

KemTab Advance Extraction Table

The KemTab Advance extraction and cutting table is a solid and flexible solution for your plasma cutting operations with a capacity of up to 300 A and for materials up to 150 mm thick when using gas cutting. The modular design means many different table sizes can be created. Large slag trays ensure quick cleaning at longer cleaning intervals.

  • For plasma cutting up to 300 amps (short peaks 400 A)
  • For gas cutting with sheet metal up to 150 mm thick
  • Better cut quality and less wear due to innovative design of the material support easyFRAME
  • No external follow-up costs caused by in-house production of wear parts due to easyFRAME
  • No cleaning or maintenance required on the material support as it can be easily replaced (easyFRAME)
  • Energy cost savings due to low extraction volume thanks to individual control of the extraction dampers of the segment in use
  • No mechanical influence of the cutting system in non-contact electronic-pneumatic control of the extraction dampers
  • Time and cost savings when cleaning the table due to large slag trays and thus longer cleaning intervals
  • Flexible table size design due to modular system (length, width)
  • Low extraction volume
  • Standard material support or easyFRAME
  • Large slag trays
  • Various pneumatic control options of the extraction damper in the individual table segments
  • Modular design
Module widths 1.100 mm, 1.600 mm, 2.100 mm, 2.600 mm, 3.100 mm
Table height 700 mm
Segment distance 515 mm
Material support frame EasyFrame Advanced

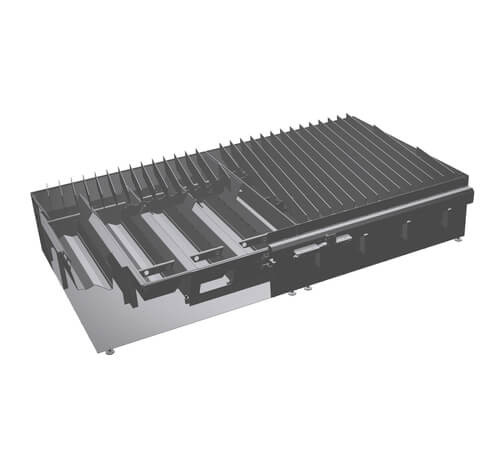

KemTab Hiend Extraction Table

KemTab Hiend Extraction Table

The KemTab HiEnd extraction table is the most rugged cutting table in our range. It is designed for plasma cutting operations with a capacity of up to 600 A and materials up to 300 mm thick when using gas cutting. Large, reinforced slag trays ensure quick cleaning and guarantee minimum downtime.

Variants

  • Extraction dampers can be controlled by various methods
  • Various table widths and lengths

  • For plasma cutting of up to 600 Ampere (short term 800 A and higher)
  • For gas cutting with sheet metal up to 300 mm thick
  • Use with particularly high cutting currents and material thicknesses possible due to the material support surface and table construction being separate and due to the external pneumatic system
  • Energy cost savings due to low extraction volume thanks to individual control of the extraction dampers of the segment in use
  • No mechanical influence of the cutting system in non-contact electronic-pneumatic control of the extraction dampers
  • Time and cost savings when cleaning the table due to large slag trays and thus longer cleaning intervals
  • Low wear on the pneumatic system since it is separated from the air stream
  • Low extraction volume
  • Robust, self-supporting material support
  • Material support and lower part of the table are separate from each other
  • Large, reinforced slag trays
  • Various pneumatic control options of the extraction damper in the individual table segments
  • Air flow and mechanical system are separated from each other
  • Modular design
Table width 2.200 mm, 2.700 mm, 3.100 mm, 4.400 mm
Table height 850 mm
Table lengths Any
Segment distance 515 mm

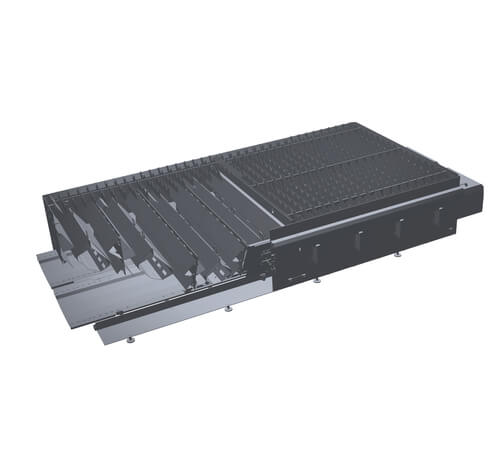

KemTab Vibro Extraction Table

KemTab Vibro Extraction Table

The KemTab Vibro extraction table with automatic discharge system ensures continuous work without interruptions for cleaning. The table is designed for cutting performance of up to 400 A and materials up to 150 mm thick.

Variants

  • Extraction dampers can be controlled by various methods
  • Various material support frames
  • Various table widths and lengths

  • For plasma cutting up to 400 amps (short peaks 450 A)
  • For gas cutting with sheet metal up to 150 mm thick
  • Better utilization and efficiency of the cutting system due to automatic waste discharge and therefore minimal downtime for cleaning
  • Better cut quality and less wear due to innovative design of the material support easyFRAME
  • No external follow-up costs caused by in-house production of wear parts due to easyFRAME
  • No cleaning or maintenance required on the material support as it can be easily replaced (easyFRAME)
  • Energy cost savings due to low extraction volume thanks to individual control of the extraction dampers of the segment in use
  • No mechanical influence of the cutting system in non-contact electronic-pneumatic control of the extraction dampers
  • Low wear on the pneumatic system since it is separated from the air stream
  • Automatic discharge of slag by vibration conveyor
  • Low extraction volume
  • Standard material support or easyFRAME
  • Various pneumatic control options of the extraction damper in the individual table segments
  • Exterior pneumatic system
  • Air flow and mechanical system are separated from each other
  • Modular design
Module width 2.100 mm, 2.600 mm, 3.100 mm, 4.200 mm
Table height 820 mm
Material support frame EasyFrame Advance
↑
