Central Extraction And Filtration Units

PRODUCT MAP

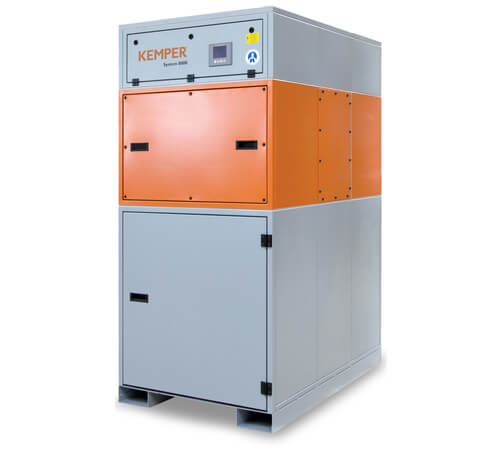

Welding Fume Extraction Unit System 8000 up to 2,160 m3/h

Welding Fume Extraction Unit System

The solid yet compact welding smoke extraction system is ideally suited for factory buildings and welding shops with high levels of smoke and dust. Supplied ready to plug in and equipped with forklift pockets and lifting eyes, the System 8000 is quickly installed as a central extraction and filter system for multiple welding work stations, cutting machines and welding robots. The KemTex® ePTFE membrane filter cartridges for ultra-fine dust particles separate particles even below 0.1 µm, and due to the W3/IFA Certification, the extraction filter unit System 8000 is also suitable for use when machining chromium-nickel steel.

Variants

  • Extraction capacity 1000 - 1400 m3/h
  • Extraction capacity 1250 - 1800 m3/h
  • Extraction capacity 1500 - 2160 m3/h
Accessories
  • Automatic dust disposal - DustEvac
  • Automatic extraction volume control
  • External On/Off
  • Spark separator – SparkTrap
  • Weatherproof housing for outdoor installation

  • High levels of smoke and dust
  • Welding and grinding shops
  • Training centres and robotic welding lines
  • Laser, plasma and flame cutting systems
  • Can be installed outdoors
  • Contamination-free dust collection due to compressed air fixation of dust collection containers
  • Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
  • Little noise emission due to a particularly low noise level
  • Quick and simple set up, delivered ready to plug in with forklift pockets and lifting eyes
  • Considerable energy cost savings by using the automatic extraction volume control
  • Convenient operation due to intelligent control via touch screen with diagnostic system
  • Flexible integration of the control system into third-party systems such as cutting equipment due to potential-free contacts
  • Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
  • Automatic filter cleaning, pressure-controlled
  • Control via touch screen
  • W3/IFA certified
  • KemTex® ePTFE filter cartridges
  • Dust collection container with pneumatic lifting device
  • Preassembled and ready to plug in
  • Automatic extraction volume control (optional)
  • Forklift bags

Welding Fume Extraction Unit System 8000 up to 2,880 m3/h

Welding Fume Extraction Unit System

The solid yet compact welding smoke extraction system is ideally suited for factory buildings and welding shops with high levels of smoke and dust. Supplied ready to plug in and equipped with forklift pockets and lifting eyes, the System 8000 is quickly installed as a central extraction and filter system for multiple welding work stations, cutting machines and welding robots. The KemTex® ePTFE membrane filter cartridges for ultra-fine dust particles separate particles even below 0.1 µm, and due to the W3/IFA Certification, the extraction filter unit System 8000 is also suitable for use when machining chromium-nickel steel.

Variants

  • Extraction capacity 1750 - 2520 m3/h
  • Extraction capacity 2000 - 2800 m3/h
  • Welding Fume Extraction Unit System 8000
Accessories
  • Automatic dust disposal - DustEvac
  • Automatic extraction volume control
  • External On/Off
  • Spark separator – SparkTrap
  • Weatherproof housing for outdoor installation

  • High levels of smoke and dust
  • Welding and grinding shops
  • Training centres and robotic welding lines
  • Laser, plasma and flame cutting systems
  • Can be installed outdoors
  • Contamination-free dust collection due to compressed air fixation of dust collection containers
  • Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
  • Little noise emission due to a particularly low noise level
  • Quick and simple set up, delivered ready to plug in with forklift pockets and lifting eyes
  • Considerable energy cost savings by using the automatic extraction volume control
  • Convenient operation due to intelligent control via touch screen with diagnostic system
  • Flexible integration of the control system into third-party systems such as cutting equipment due to potential-free contacts
  • Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
  • Automatic filter cleaning, pressure-controlled
  • Control via touch screen
  • W3/IFA certified
  • KemTex® ePTFE filter cartridges
  • Dust collection container with pneumatic lifting device
  • Preassembled and ready to plug in
  • Automatic extraction volume control (optional)
  • Forklift bags

Welding Fume Extraction Unit System 8000 up to 4,320 m3/h

Welding Fume Extraction Unit System

The solid yet compact welding smoke extraction system is ideally suited for factory buildings and welding shops with high levels of smoke and dust. Supplied ready to plug in and equipped with forklift pockets and lifting eyes, the System 8000 is quickly installed as a central extraction and filter system for multiple welding work stations, cutting machines and welding robots. The KemTex® ePTFE membrane filter cartridges for ultra-fine dust particles separate particles even below 0.1 µm, and due to the W3/IFA Certification, the extraction filter unit System 8000 is also suitable for use when machining chromium-nickel steel

Variants

  • Extraction capacity 2250 - 3240 m3/h
  • Extraction capacity 2500 - 3600 m3/h
  • Extraction capacity 2750 - 3960 m3/h
  • Extraction capacity 3000 - 4320 m3/h
Accessories
  • Automatic dust disposal - DustEvac
  • Automatic extraction volume control
  • External On/Off
  • Spark separator – SparkTrap
  • Weatherproof housing for outdoor installation

  • High levels of smoke and dust
  • Welding and grinding shops
  • Training centres and robotic welding lines
  • Laser, plasma and flame cutting systems
  • Can be installed outdoors
  • Contamination-free dust collection due to compressed air fixation of dust collection containers
  • Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
  • Little noise emission due to a particularly low noise level
  • Quick and simple set up, delivered ready to plug in with forklift pockets and lifting eyes
  • Considerable energy cost savings by using the automatic extraction volume control
  • Convenient operation due to intelligent control via touch screen with diagnostic system
  • Flexible integration of the control system into third-party systems such as cutting equipment due to potential-free contacts
  • Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
  • Automatic filter cleaning, pressure-controlled
  • Control via touch screen
  • W3/IFA certified
  • KemTex® ePTFE filter cartridges
  • Dust collection container with pneumatic lifting device
  • Preassembled and ready to plug in
  • Automatic extraction volume control (optional)
  • Forklift bags

Welding Fume Extraction Unit System 8000 up to 6.480 m3/h

Welding Fume Extraction Unit System

The solid yet compact welding smoke extraction system is ideally suited for factory buildings and welding shops with high levels of smoke and dust. Supplied ready to plug in and equipped with forklift pockets and lifting eyes, the System 8000 is quickly installed as a central extraction and filter system for multiple welding work stations, cutting machines and welding robots. The KemTex® ePTFE membrane filter cartridges for ultra-fine dust particles separate particles even below 0.1 µm, and due to the W3/IFA Certification, the extraction filter unit System 8000 is also suitable for use when machining chromium-nickel steel.

Variants

  • Extraction capacity 3250 - 4680 m3/h
  • Extraction capacity 3500 - 5040 m3/h
  • Extraction capacity 4000 - 5760 m3/h
  • Extraction capacity 4500 - 6840 m3/h
Accessories
  • Automatic dust disposal - DustEvac
  • Automatic extraction volume control
  • External On/Off
  • Spark separator – SparkTrap
  • Weatherproof housing for outdoor installation

  • High levels of smoke and dust
  • Welding and grinding shops
  • Training centres and robotic welding lines
  • Laser, plasma and flame cutting systems
  • Can be installed outdoors
  • Contamination-free dust collection due to compressed air fixation of dust collection containers
  • Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
  • Little noise emission due to a particularly low noise level
  • Quick and simple set up, delivered ready to plug in with forklift pockets and lifting eyes
  • Considerable energy cost savings by using the automatic extraction volume control
  • Convenient operation due to intelligent control via touch screen with diagnostic system
  • Flexible integration of the control system into third-party systems such as cutting equipment due to potential-free contacts
  • Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
  • Automatic filter cleaning, pressure-controlled
  • Control via touch screen
  • W3/IFA certified
  • KemTex® ePTFE filter cartridges
  • Dust collection container with pneumatic lifting device
  • Preassembled and ready to plug in
  • Automatic extraction volume control (optional)
  • Forklift bags

Welding Fume Extraction Unit System 8000 up to 9.360 m3/h

Welding Fume Extraction Unit System

Robust, reliable and solid - the central extraction and filter system 9000 for high levels of smoke and dust. Ideally suited for large welding shops, training centres or for connecting to cutting machines. The KemTex® ePTFE membrane filter cartridges for ultra-fine dust particles separate particles even below 0.1 µm. If your requirements change, the system can grow flexibly by means of modular extensions.

Variants

  • Extraction capacity 5000 - 7200 m3/h
  • Extraction capacity 5500 - 7920 m3/h
  • Extraction capacity 6000 - 8640 m3/h
  • Extraction capacity 6500 - 9360 m3/h
Accessories
  • Automatic dust disposal - DustEvac
  • Automatic extraction volume control
  • External On/Off
  • Spark separator – SparkTrap
  • Weatherproof housing for outdoor installation

  • High levels of smoke and dust
  • Welding and grinding shops
  • Training centres and robotic welding lines
  • Laser, plasma and flame cutting systems
  • Can be installed outdoors
  • Contamination-free dust collection due to compressed air fixation of dust collection containers
  • Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
  • Little noise emission due to a particularly low noise level
  • Quick and simple set up, delivered ready to plug in with forklift pockets and lifting eyes
  • Considerable energy cost savings by using the automatic extraction volume control
  • Convenient operation due to intelligent control via touch screen with diagnostic system
  • Flexible integration of the control system into third-party systems such as cutting equipment due to potential-free contacts
  • Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
  • Automatic filter cleaning, pressure-controlled
  • Control via touch screen
  • KemTex® ePTFE filter cartridges
  • W3/IFA certification available for many units
  • Dust collection container with pneumatic lifting device
  • Preassembled and ready to plug in
  • Automatic extraction volume control (optional)
  • Forklift bags

Welding Fume Extraction Unit System 9000 up to 13.680 m3/h

Welding Fume Extraction Unit System

Robust, reliable and solid - the central extraction and filter system 9000 for high levels of smoke and dust. Ideally suited for large welding shops, training centres or for connecting to cutting machines. The KemTex® ePTFE membrane filter cartridges for ultra-fine dust particles separate particles even below 0.1 µm. If your requirements change, the system can grow flexibly by means of modular extensions.

Variants

  • Extraction capacity 7,000 - 10,080 m³/h
  • Extraction capacity 7,500 - 10,800 m³/h
  • Extraction capacity 8,000 - 11,520 m³/h
  • Extraction capacity 8,500 - 12,240 m³/h
  • Extraction capacity 9,000 - 12,960 m³/h
  • Extraction capacity 9,000 - 12,960 m³/h
  • Extraction capacity 9,500 - 13,680 m³/h
  • Fume Extraction Unit System 9000
  • Extraction capacity 9,500 - 13,680 m³/h
Accessories
  • Automatic dust disposal - DustEvac
  • Automatic extraction volume control
  • External On/Off
  • Spark separator – SparkTrap
  • Weatherproof housing for outdoor installation

  • Extraction performance required: greater than 10,000 m3/h
  • High levels of smoke and dust
  • Training centres and robotic welding lines
  • Laser, plasma and flame cutting systems
  • Can be installed outdoors
  • Welding and grinding shops
  • Contamination-free dust collection due to compressed air fixation of dust collection containers
  • Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
  • Little noise emission due to a particularly low noise level
  • Expandable due to simple modular construction
  • Considerable energy cost savings by using the automatic extraction volume control
  • Convenient operation due to intelligent control via touch screen with diagnostic system
  • Flexible integration of the control system into third-party systems such as cutting equipment due to potential-free contacts
  • Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
  • Automatic filter cleaning, pressure-controlled
  • Control via touch screen
  • KemTex® ePTFE filter cartridges
  • W3/IFA certification available for many units
  • Dust collection container with pneumatic lifting device
  • Modular design
  • Automatic extraction volume control (optional)
  • Forklift bags

Welding Fume Extraction Unit System 9000 up to 26.640 m3/h

Welding Fume Extraction Unit System

Robust, reliable and solid - the central extraction and filter system 9000 for high levels of smoke and dust. Ideally suited for large welding shops, training centres or for connecting to cutting machines. The KemTex® ePTFE membrane filter cartridges for ultra-fine dust particles separate particles even below 0.1 µm. If your requirements change, the system can grow flexibly by means of modular extensions.

Variants

  • Extraction capacity 10,000 - 14,400 m3/h
  • Extraction capacity 10,500 - 15,120 m3/h
  • Extraction capacity 11,000 - 15,840 m3/h
  • Extraction capacity 11,000 - 15,840 m3/h
  • Extraction capacity 11,500 - 16,560 m3/h
  • Extraction capacity 12,000 - 17,280 m3/h
  • Extraction capacity 12,000 - 17,280 m3/h
  • Extraction capacity 12,500 - 18,000 m3/h
  • Max. extraction capacity : 26,000m3/h
  • Extraction capacity 13,500 - 19,440 m3/h
  • Max. extraction capacity : 28,000m3/h
  • Max. extraction capacity : 29,000m3/h
  • Max. extraction capacity : 30,000m3/h
  • Max. extraction capacity : 31,000m3/h
  • Max. extraction capacity : 32,000m3/h
  • Max. extraction capacity : 32,000m3/h
  • Max. extraction capacity : 33,000m3/h
  • Max. extraction capacity : 34,000m3/h
  • Max. extraction capacity : 35,000m3/h
  • Max. extraction capacity : 36,000m3/h
  • Max. extraction capacity : 37,000m3/h
  • Max. extraction capacity : 37,000m3/h
Accessories
  • Automatic dust disposal - DustEvac
  • Automatic extraction volume control
  • External On/Off
  • Spark separator – SparkTrap
  • Weatherproof housing for outdoor installation

  • Extraction performance required: greater than 10,000 m3/h
  • High levels of smoke and dust
  • Training centres and robotic welding lines
  • Laser, plasma and flame cutting systems
  • Can be installed outdoors
  • Welding and grinding shops
  • Contamination-free dust collection due to compressed air fixation of dust collection containers
  • Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
  • Little noise emission due to a particularly low noise level
  • Expandable due to simple modular construction
  • Considerable energy cost savings by using the automatic extraction volume control
  • Convenient operation due to intelligent control via touch screen with diagnostic system
  • Flexible integration of the control system into third-party systems such as cutting equipment due to potential-free contacts
  • Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
  • Automatic filter cleaning, pressure-controlled
  • Control via touch screen
  • KemTex® ePTFE filter cartridges
  • W3/IFA certification available for many units
  • Dust collection container with pneumatic lifting device
  • Modular design
  • Automatic extraction volume control (optional)
  • Forklift bags

Welding Fume Extraction Unit System 9000 > 26.640 m3/h

Welding Fume Extraction Unit System

Robust, reliable and solid - the central extraction and filter system 9000 for high levels of smoke and dust. Ideally suited for large welding shops, training centres or for connecting to cutting machines. The KemTex® ePTFE membrane filter cartridges for ultra-fine dust particles separate particles even below 0.1 µm. If your requirements change, the system can grow flexibly by means of modular extensions.

Variants

  • Extraction capacity 19,000 - 27,360 m3/h
  • Extraction capacity 19,500 - 28,080 m3/h
  • Extraction capacity 20,000 - 28,800 m3/h
  • Extraction capacity 25,000 - 36,000 m3/h
  • Extraction capacity 30,500 - 43,000 m3/h
Accessories
  • Automatic dust disposal - DustEvac
  • Automatic extraction volume control
  • External On/Off
  • Spark separator – SparkTrap
  • Weatherproof housing for outdoor installation

  • High levels of smoke and dust
  • Training centres and robotic welding lines
  • Laser, plasma and flame cutting systems
  • Can be installed outdoors
  • Welding and grinding shops
  • Contamination-free dust collection due to compressed air fixation of dust collection containers
  • Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
  • Little noise emission due to a particularly low noise level
  • Expandable due to simple modular construction
  • Considerable energy cost savings by using the automatic extraction volume control
  • Convenient operation due to intelligent control via touch screen with diagnostic system
  • Flexible integration of the control system into third-party systems such as cutting equipment due to potential-free contacts
  • Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
  • Automatic filter cleaning, pressure-controlled
  • Control via touch screen
  • KemTex® ePTFE filter cartridges
  • W3/IFA certification available for many units
  • Dust collection container with pneumatic lifting device
  • Modular design
  • Automatic extraction volume control (optional)
  • Forklift bags

PlasmaFil/WeldFil Compact Welding Smoke Extraction Unit

PlasmaFil/WeldFil Compact Welding Smoke Extraction Unit

The PlasmaFil Compact/WeldFil Compact extraction unit is especially suitable for constructing central extraction systems or the connection to cutting systems. It is flexible and can be installed in many different locations. The filter unit system is fitted with the exceptionally durable plate filter technology and an automatic cleaning system. Dust is removed using convenient dust collection containers.

Variants

  • Extraction capacity 2,500 - 3,500 m3/h
  • Extraction capacity 3,500 - 5,000 m3/h
  • Extraction capacity 4,500 - 6,500 m3/h
  • Extraction capacity 6,000 - 8,000 m3/h
  • Extraction capacity 7,500 - 9,500 m3/h
  • Extraction capacity 8,000 - 11,000 m3/h
Accessories
  • Automatic dust removal - DustEvac
  • Automatic extraction volume control
  • External On/Off
  • SparkTrap
  • Automatic Start/Stop

  • Medium to high amounts of smoke and dust
  • Can be installed outdoors
  • Plasma and oxy-fuel cutting systems
  • Robotic welding
  • Manual and automatic welding
  • Easy transportation and installation
  • Low service costs due to durable plate filter technology
  • Predictable costs with lifetime filter warranty (service contract)
  • Suitable for spaces with low ceiling - fan unit can be separated
  • Optimal cleaning performance due to down-flow principle
  • Touchscreen allows safe and easy operation
  • Little floor space required due to compact design
  • Automatic filter cleaning
  • Control via touch screen
  • Down flow filtration
  • Forklift bags and lifting eyes
  • Plate filter technology
↑
