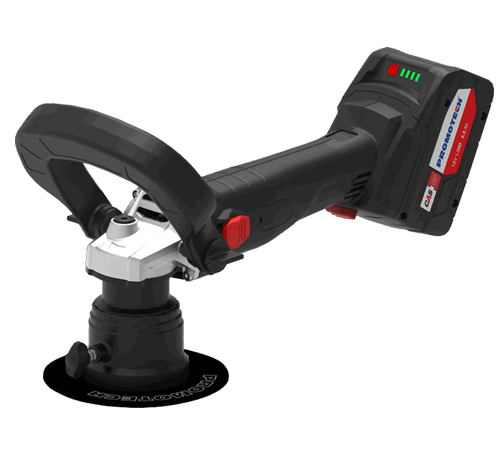

BM-6 Battery | Cordless Compact Beveller

Battery-powered, compact and lightweight machine produces bevels up to 6 mm wide on plates, pipes and contours. The BM-6 Battery is also the perfect solution for rounding off radius R2, R3, R4, R5 on metal structures before painting to prevent rust build-up on sharp edges. It offers greater flexibility and portability without the risk of tripping over or tangling a supply cable, and is ideal for working outdoors in remote areas where no power supply is available. To extend the working time, BM-6 Battery is supplied with 2 rechargeable CAS batteries.

• Continuous bevel width adjustment up to 6 mm at 45 degrees (30 degrees – option)
• Creates a perfect radius R2, R3, R4 or R5 in just one pass, saving time & money over conventional grinding methods
• Ideal for use in the field – no need for mains power and no cable to carry around
• Conveniently powered by an 18-volt DC battery, the same CAS battery as other cordless PROMOTECH machines
• The LiHD battery ensures maximum power availability
• Single 45-degree milling head for both radius and V bevels
• Countersinking of holes with a minimum diameter of 40 mm
• Overload protection to prevent motor damage

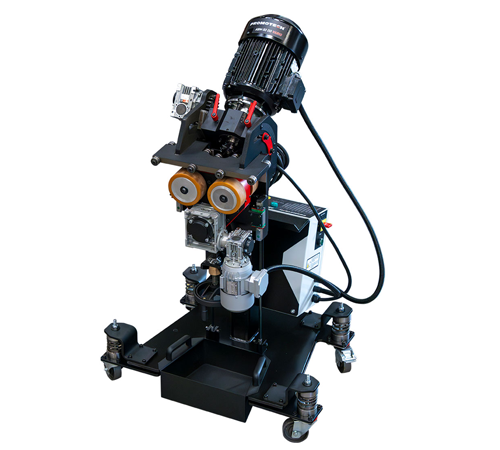

ABM-50 DD / Vario | Auto-Feed Heavy Duty Beveller

ABM-50 DD Vario is the self-propelled beveling machine that produces high-quality bevels up to 50 mm wide without thermal distortion or the creation of heat affected zone on top edge of plates from 8 mm to 80 mm thick. Adjustment of spindle speed and feed rate, together with a load level LED monitoring system, helps to optimize cutting conditions depending on the grade of material, including stainless steel, duplex, alloys, hardox and many others. The ABM-50 DD Vario allows continuous adjustment of bevel angle over a wide range from 15 to 70 degrees. For beveling carbon steel only, the customer can choose the basic ABM-50 DD model with fixed spindle speed.

• Self-propelled machine moves along the edge of the plate at speeds of up to 1.2 m/min.
• Auto-feed machining to increase ergonomics, comfort, and productivity
• Continuous bevel angle adjustment from 15° to 70°
• High-quality bevels made without thermal distortion or creation of heat-affected zone on plate thickness range 8-80 mm
• Continuous bevel width adjustment up to 50 mm at 45 degrees
• Variable spindle speed for machining a wide range of steel grades
• LED monitoring system indicates the load level by means of green, yellow and red signals to prevent motor damage

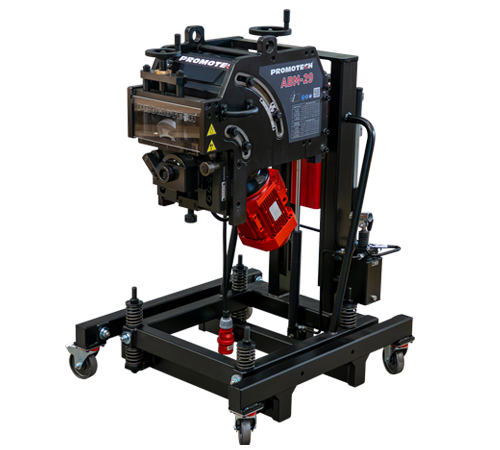

ABM-29 | Auto-Feed Double-Side Heavy Duty Portable Beveller

In order to meet ever-growing quality and efficiency requirements for heavy bevelling in metalworking industries, Promotech is introducing a new portable machine for double-sided heavy plate machining. As in the already known ABM-14 beveller the new ABM-29 machine is using a shearing method for bevelling.

ABM-29 is a self-propelled heavy-duty machine which can bevel up to 20 mm width just in one pass. The ABM-29 performs double-sided bevels between 20 and 45 degrees on a variety of steels, including stainless steel and other special steel plates, without the need to turn the plate over. This beveller is equipped with an ergonomically designed trolley for transport and storage. For machining of smaller parts or pipes with ID > 150 mm, stationary operation with ABM-29 is also possible.

• Heavy-duty beveller which auto travels along an edge of a plate with speeds of up to 1.7 m/min.
• Up to 20 mm bevel width in one run and maximum 29 mm bevel width after multi passes
• Continuous milling height/bevel width adjustment
• Continuous bevel angle adjustment between 20 and 45 degrees
• Integrated trolley to facilitate top & bottom bevelling with height adjustment between 685 and 1000 mm
• Stationary operation for machining small workpieces
• Pipe machining with minimum ID 150 mm (6″)
• Overload protection
• Reverse travel mode to free jammed tool
• ABM-29 is a low-noise machine
• 2 years of warranty

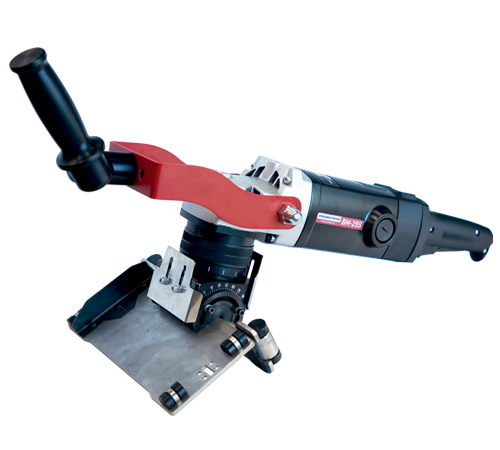

BM-25S | Stainless Steel Plate Beveller

The BM-25S is an easy-to-use, portable heavy-duty machine designed to machine stainless steel. The beveller is equipped with a powerful motor and fitted with face milling beveling head allowing smooth operation and exceptional efficiency. BM-25S allows milling of straight edges with a bevel width up to 25 mm, and the variable spindle speed makes it easy to optimize cutting conditions. Continuously adjustable bevel angle between 0 and 90 degrees and milling depth for full control of the milling process. The beveller is equipped with a roller guide, which makes it easy and light to operate. All components of the guide are made of stainless steel to protect against contamination. BM-25S has got a state-of-the-art electronic motor overload module protecting the operator, the machine and the tooling.

• Contamination-free stainless steel processing
• Maximum 25 mm bevel width (more than one pass could be required)
• The continuously adjustable bevel angle between 0 and 90 degrees – one milling head in use only
• Powerful motor with electronic speed control between 1800–5850 rpm to work with various materials
• A single head works with the face milling method, allowing less milling resistance and effort for the operator
• overload protection to prevent motor damage
• 2 years of warranty

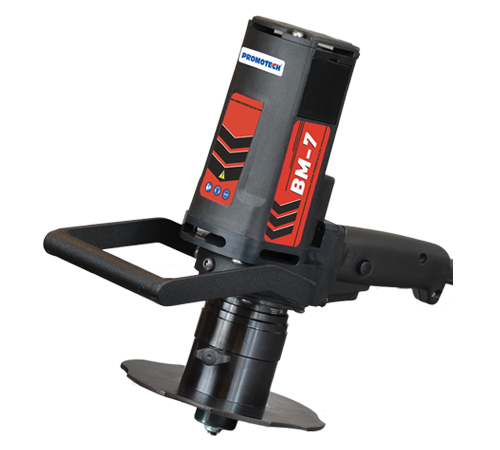

BM-7 | Compact Plate And Pipe Beveller

Small and lightweight beveling machine for milling plates, pipes, and contour profiles. Perfect solution for radius edge applying to steel sections before painting, to prevent rust build up on sharp edges. Quick, simple-to-use beveller that creates a perfect radius (R2, R3, R4 or R5) in just one pass, saving time and money over conventional grinding methods.

• Lightweight and compact design
• Small overall dimensions
• Excellent for limited access
• Continuous bevel width adjustments
• Ideal for radius edge beveling
• One single 45 degrees milling head for both radius and V bevels
• 2 years of warranty

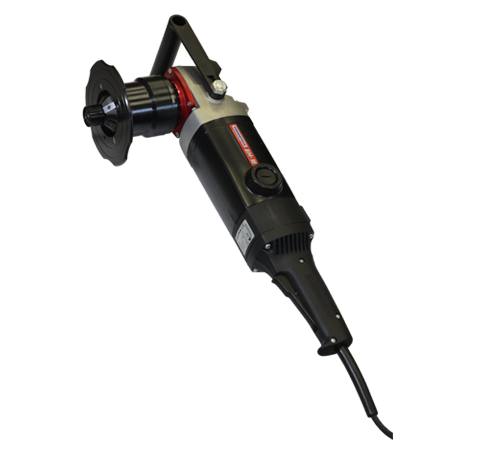

BM-18 | Multitask Plate and Pipe Beveller

The BM-18 is a new generation portable multitask plate and pipe beveller driven by a powerful electric motor. It enables milling straight edges up to 18 mm bevel width, contours, and holes from 40 mm in diameter and rounding off steel construction before painting or coating with radius R2, R3, R4 or R5. New hexagonal fixing of milling heads increases beveller durability and makes replacement of the heads more convenient and user-friendly.

Variable spindle speed enables optimizing cutting conditions depending on the sort of material grade incl. stainless steel, alloys, aluminum, brass, or plastic.

• Maximum 18 mm bevel width (more than one pass could be required)
• New more durable milling heads with hexagonal fixing for easy replacement
• Electronic speed control between 1800–5850 rpm for use on a variety of materials
• Continuous milling depth adjustment to fully control the bevelling process
• Overload protection to prevent motor damage
• Rounding radius R2, R3, R4, R5 on both straight and curved edges
• Optional accessories expand the possible applications of the BM-18 to deal with pipes and small workpieces
• 2 years of warranty

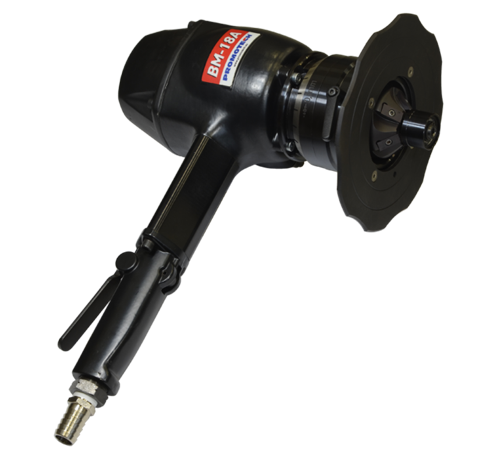

BM-18A | Pneumatic Plate Beveller

The BM-18A is a plate beveller driven by a powerful pneumatic motor. It enables milling straight edges up to 18 mm bevel width, contours, holes from 40 mm in diameter and rounding radius R2, R3, R4 and R5. New hexagonal fixing of milling heads increases beveller durability and makes replacement of the heads more convenient and user-friendly.

• Powerful pneumatic motor
• Maximum 18 mm bevel width (more than one pass could be required)
• New more durable milling heads with hexagonal fixing for easy replacement
• Continuous milling depth adjustment to fully control the bevelling process
• Rounding radius R2, R3, R4, R5 on both straight and curved edges
• 2 years of warranty

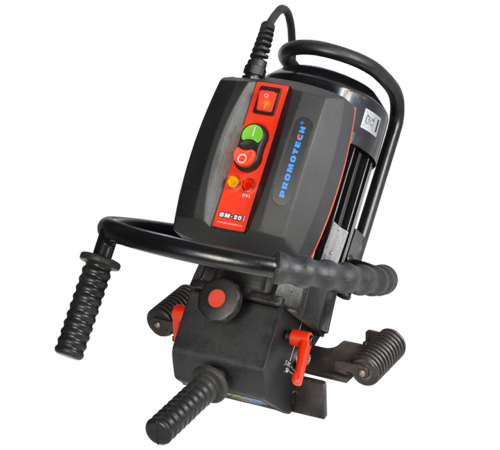

BM-20plus | Portable Beveller

BM-20plus is an easy-to-use, portable heavy-duty machine designed for beveling steel plates and pipes prior to welding. The machine is fitted with two rotary milling heads, each holding five 4-sided indexable inserts, allowing smooth operation and exceptional efficiency. BM-20plus has a state-of-the-art electronic motor overload module protecting the operator, the machine, and the tooling. It is also equipped with guide rolls, which make it easy and light to operate.

• Portable, heavy-duty machine
• Maximum 21 mm bevel width
• The continuously adjustable bevel angle between 15° and 60°
• Fitted with two rotary milling heads for smooth and efficient operation
• Continuous milling depth adjustment to fully control the beveling process
• Automatic motor overload protection to prevent motor damage
• Optional accessories extend the application possibilities of the BM-20plus for machining pipes, and round plates and creating a flat surface at the of the workpiece (facing off)
• 2 years of warranty

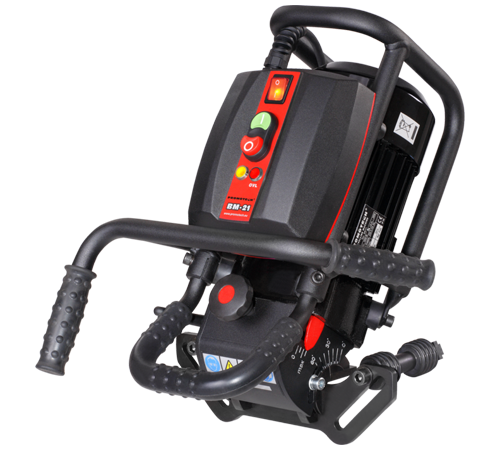

BM-21 | Industrial Plate & Pipe Beveler

The BM-21 beveling machine can perform bevels up to 21 mm and allows continuously adjustable bevel angles from 0° up to 60°. The BM21 can handle pipes from 150 mm (6″) to 300 mm (12″) in diameter. When equipped with an optional guide, it allows working on pipes with a diameter of more than 300 mm (12″). BM-21 contains an anti-vibration system including specially shaped gripping construction with 4 dampers, enabling more comfortable operation, and minimizing unwanted vibrations.

• Monobloc milling head equipped with 10 square inserts to make the machining process far more efficient and much less operator fatiguing
• easy setting of bevel width up to 21 mm at 45°
• continuous angle adjustment from 0 to 60 degrees
• automatic motor overload protection to prevent motor damage
• quick and simple replacement of cutting inserts
• one universal guide plate for beveling both plates and pipes
• 2 years of warranty

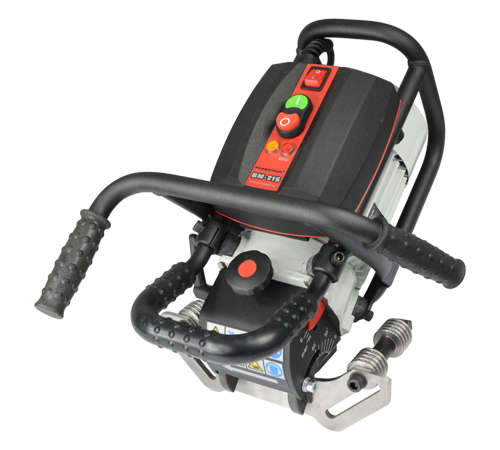

BM-21S | Stainless Steel Plate & Pipe Beveler

The BM-21S beveling machine equipped with a low-speed motor is suitable for milling stainless steel plates and pipes. It can perform bevels up to 21 mm and allows continuously adjustable bevel angles from 0° up to 60°. The BM21S can handle pipes from 150 mm (6″) to 300 mm (12″) in diameter. When equipped with an optional guide, it allows working on pipes with a diameter of more than 300 mm (12″). BM-21S contains an anti-vibration system including specially shaped gripping construction with 4 dampers, enabling more comfortable operation, and minimizing unwanted vibrations.

• Guide plate with rolls made of stainless steel to protect the workpiece from contamination
• Monobloc milling head equipped with 10 square inserts to make the machining process far more efficient and much less operator fatiguing
• easy setting of bevel width up to 21 mm at 45°
• continuous angle adjustment from 0 to 60 degrees
• automatic motor overload protection to prevent motor damage
• quick and simple replacement of cutting inserts
• one universal guide plate for beveling both plates and pipes
• 2 years of warranty

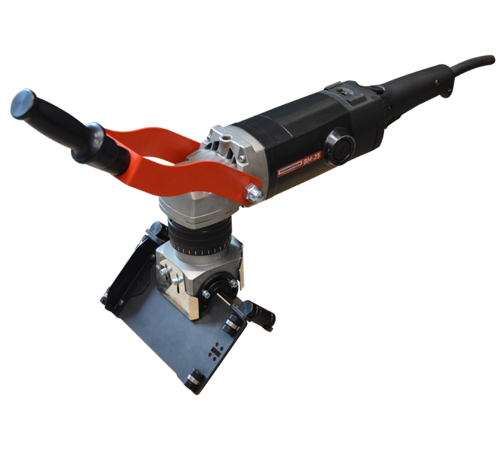

BM-25 | Plate Beveling Machine

The BM-25 is an easy-to-use, portable, heavy-duty machine, enabling bevels up to 25 mm wide. The beveller is equipped with a powerful motor and fitted with a face milling beveling head, allowing smooth operation and exceptional efficiency. BM-25 enables milling straight edges up to 25 mm bevel width, whereas variable spindle speed facilitates optimizing cutting conditions. Continuously adjustable milling depth and bevel angle between 0 and 90 require no tooling to change.

• Maximum 25 mm bevel width (more than one pass could be required)
• the continuously adjustable bevel angle between 0 and 90 degrees – one milling head in use only
• powerful motor with electronic speed control between 1800 –5850 rpm to work with various materials
• a single head works with the face milling method, allowing less milling resistance and effort for the operator
• overload protection to prevent motor damage
• continuous milling depth adjustment to fully control the beveling process
• adjustable handle and grip for comfort and ergonomics
• 2 years of warranty

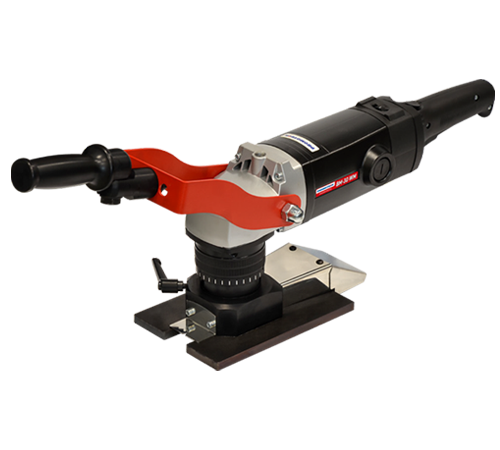

BM-30 WM | Weld Milling Machine

The BM-30 WM is an easy-to-use, portable, heavy-duty machine designed specifically for the removal of excess weld seams up to 11 mm high and 30 mm wide. It is capable of milling a weld seam down to a level and continuous surface with the rest of the parent metal in preparation for painting, coating or any other further processing.

The BM-30 WM has a powerful motor with electronic speed control between 1800–5850 rpm to facilitate optimizing cutting conditions. The beveller is fitted with a rotary face milling head that ensures smooth operation and exceptional efficiency without creating any heat-affected zones or distortion of the workpiece. BM-30 WM is equipped with a guide rail with a magnetic clamping system to maintain a constant position of the machine against the workpiece.

• Comfort and ergonomics of work
• Powerful electric motor
• Removal of excess weld up to 11 mm high and 30 mm wide
• Possibility of undercutting to a depth of up to 1.5 mm
• Continuous milling height adjustment
• Milling head is equipped with 5 pcs of 2-sided indexable cutting inserts
• Electronic speed control between 1800–5850 rpm
• Overload protection
• 2 years of warranty

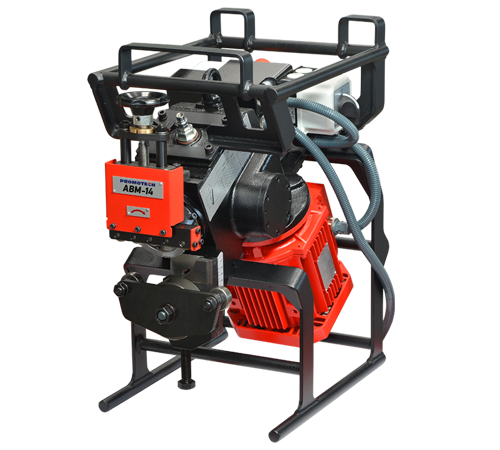

ABM-14 | Plate and pipe beveler

ABM-14 is an auto-feed beveling machine designed for milling plates and pipes made of carbon steel, alloy steel, stainless steel, or aluminum alloys. The machine can bevel up to 12 mm (1/2″) in width just in one run. Depending on the materials, two or more runs are needed to achieve a maximum bevel width of 14 mm (9/16″). The ABM-14 enables producing double-sided bevels without having to flip the plate.

• ABM-14 runs automatically along the edge of the long workpiece
• two optional trolleys to increase ergonomics, comfort, and productivity
• standard shearing cutter for machining stainless/alloyed steel
• two optional shearing cutters dedicated to carbon steel and to aluminum
• stationary operation is possible for machining small workpieces or pipes with ID > 100 mm (4″)
• additional vertical roller guide enables machining concave edges if the curvature radius is 1500 mm or more
• ABM-14 is a low-noise machine
• 2 years of warranty

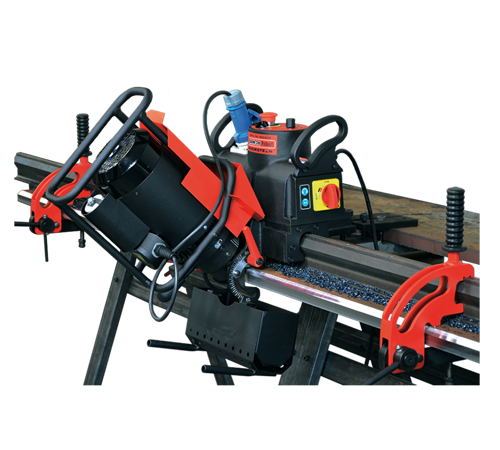

ABM-28 | Auto Feed Plate Beveler

ABM-28 self-propelled machine produces accurate high-quality double-sided bevels without thermal distortion or creation of heat affected zone. The machine can work in both travel directions, eliminating the hard physical work of the operator. ABM-28 features an infinitely adjustable bevel angle between – 60 and + 60 and is capable of producing bevels up to 28 mm wide.

• Auto feed beveling on steel plates on top, face, and bottom edges
• The continuously adjustable bevel angle between 60 and minus 60 degrees – no need to rotate or flip heavy material, enhancing safety and reducing material handling time and expense
• Max. bevel width from 28 up to 35 mm depending on the beveled angle
• Variable feed control for work on a variety of steel grades and thicknesses up to 35 mm as standard or optionally up to 70 mm thickness
• Motor overload protection to prevent motor damage
• Additional guide tracks are joinable to accomplish the required run length
• J-groove beveling available as an option
• 2 years of warranty

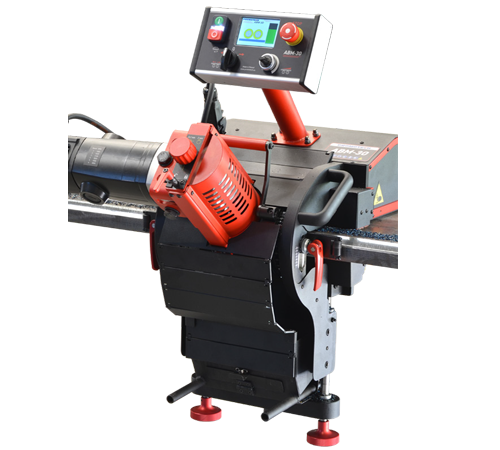

ABM-30 | Auto Feed Trackless Beveller

The ABM-30 portable beveling machine performs auto-feed beveling on steel plates on the top, face, and bottom edges. The beveller needs no track to move along the steel plate to produce accurate high-quality double-side bevels without thermal distortion or creation of heat affected zone on plate thickness range 8-60 mm. The ABM-30 features an infinitely adjustable bevel angle between – 70 and + 70 degrees and is capable of producing bevels up to 30 mm wide. It also allows for facing in both directions, with the milling head depth of 1 mm.

• 4-wheel drive eliminates the need for a guide track
• self-propelled machine for consistent bevel geometry from edge to edge
• control panel indicates the current work mode and gives safety and diagnostic information
• capable of producing bevels up to 30 mm wide
• infinite bevel angle adjustment from -70 to +70 degrees is quick and user-friendly
• produces double-side bevels without having to flip the plate, enhancing safety and reducing material handling time and expense
• feedback-controlled overload system to prevent motor damage
• semi-automatic drive stop at the plate end
• 2 years of warranty

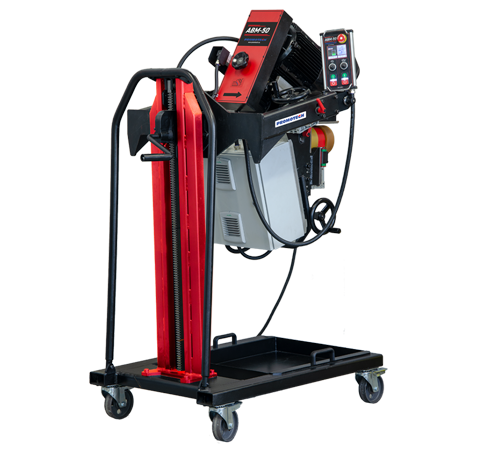

ABM-50 | Auto feed bevelling machine

ABM-50 self-propelled machine produces accurate high-quality double-sided bevels up to 50 mm without thermal distortion or creation of heat-affected zone on plate thickness range 8-80 mm (15/16″ – 3 1/8″). The beveller features a unique remote control panel with LCD that shows exact bevel geometry and enables precise adjustment of spindle speed as well as feed speed to optimize them depending on material grade. The precise bevel geometry can be achieved thanks to real-time measurement and live on-screen readings

• auto-feed machining to increase ergonomics, comfort, and productivity
• bevel width up to 50 mm (2″) at 45 degrees
• LCD shows exact bevel geometry and cutting parameters in real time
• precise adjustment of spindle speed and feed rate according to material grade, including stainless steel, duplex, aluminum, etc.
• 180° inversion allows for the creation of a double-sided bevel – no need to rotate or flip heavy material reduces material handling time and expense
• versatile and transportable on its own trolley
• 2 years of warranty

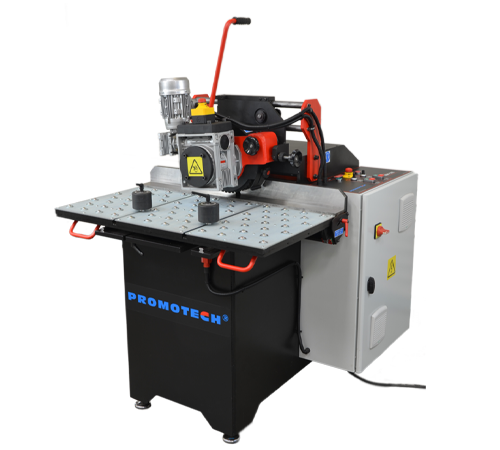

SBM-500 | Stationary Bevelling Machine

Equipped with a powerful 7.500-watt motor, the stationary beveling machine is a robust and efficient solution for beveling up to 30 mm wide on different-sized workpieces up to 100 mm thick and small pipes from 50 to 150 mm in diameter. The SBM500 features a high-speed rotary milling head that produces a clean, milled surface without thermal distortion or a heat-affected zone. Continuous adjustment of spindle speed and auto-feed rate makes it suitable for different types of steel and aluminum. Optional accessories expand the possible applications of the SBM-500 to deal with long workpieces, pipes 50-150 mm OD, and narrow workpieces with a minimum width of 30 mm.

• Precise setting of bevel angle from 15 up to 60 degrees and bevel width up to 30 mm
• 3D contact wheel control ensures proper workpiece alignment in relation to high-speed rotary milling head
• variable auto-feed to bevel both ferrous and non-ferrous materials
• cutting inserts dedicated for optimal performance on different materials
• easy access to milling head and cutting inserts
• overload protection to prevent motor damage
• SBM-500 streamlines workflow to maximize your production efficiency
• U2 years of warranty

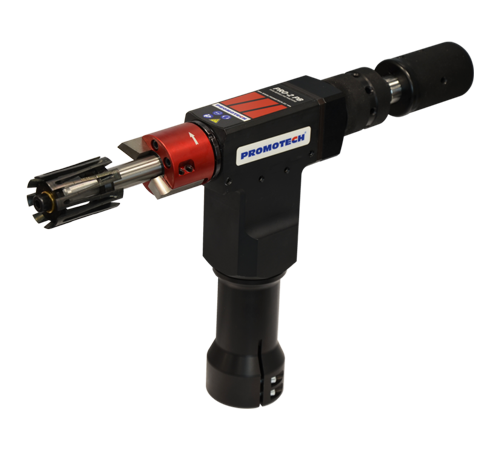

PRO 2 PB | Compact pipe beveler

PRO-2 PB is a compact and lightweight portable beveller designed to create a perfect weld prep edge on pipes made of carbon and stainless steel, aluminum alloys and copper nickels. Available with either a pneumatic motor, electric motor or battery drive the beveller can be mounted in pipe or tubing with a minimum inside diameter of 15.5 mm (0.61″) and bevel outside diameters up to 60.3 mm (2.37”). Designed with two toolholders, PRO-2 PB can simultaneously mill the OD bevel and root face. Its exceptionally narrow housing (only 48 mm wide) makes it perfectly suited to space-restricted areas such as boiler water walls. PRO-2 PB incorporates overload systems incl. wet multi-disk friction clutch to prevent gear damage if the tool gets stuck.

• Machine covers a range of diameters from 15.5 mm ID up to 60.3 mm OD
• self-centering expandable ID-mounted mandrels provide quick and proper alignment to a pipe or a tube prior to machining operations
• innovative expansion sleeves reduce fitting time and improve workflow
• standard and custom-made tool bits are available for creating various bevel angles
• up to two tool bits can be mounted and work, simultaneously to make weld prep operations fast and easy
• can be operated with a high-quality powerful pneumatic motor, top quality high torque electric motor, or battery drive depending on site conditions and customer preference
• end-user can choose from LiHD (High Density Lithium Ion) battery packs with capacities of 4.0 Ah, 5.5 Ah, or 10.0 Ah, which have an extended lifespan, more power, and longer operating time than standard lithium batteries
• 2 years of warranty

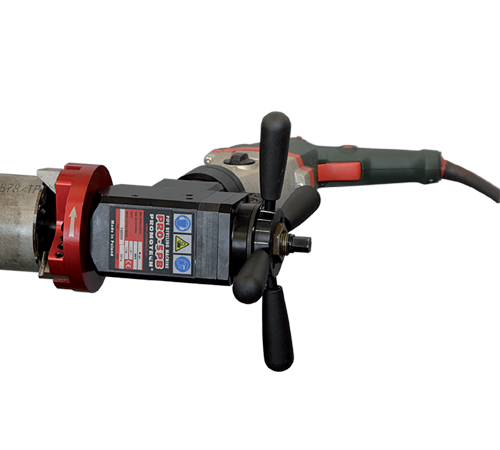

PRO-5 PB | Portable Pipe Beveler

PRO-5 PB is handy and lightweight portable beveller designed to create a perfect weld prep edge on pipes made of carbon and stainless steels, aluminum alloys and copper-nickels. Available with either pneumatic motor, electric motor or battery drive the beveller can be mounted in pipe or tubing with a minimum inside diameter of 32 mm (1.25″) and bevel outside diameters up to 140 mm (5.51”). Designed with three tool holders, PRO-5 PB can simultaneously mill the OD bevel, root face and ID counterbore to create consistent wall thickness around the joint and ensure complete weld penetration. By utilizing a self-centering mandrel which mounts internally to the open end of the tube or pipe, the beveller enables highly repeatable and consistent fit-up and can be rapidly deployed from one pipe to another to reduce cycle times and improve work flow.

• machine covers a range of diameters from 32mm ID up to 140mm OD
• self-centering expandable ID mounted mandrels provide quick and proper alignment to a pipe or a tube prior to machining operations
• up to three tool bits can be mounted to bevel, face and counter-bore simultaneously to made weld prep operations fast and easy
• standard and custom made tool bits available for creating various bevel angles for V and J-groove preparation
• optional small spindle disc and ratchet wrench enable pipe machining in difficult to access and space restricted areas
• can be operated with a high quality powerful pneumatic motor, top quality high torque electric motor or battery drive depending on site conditions and customer preference
• end-user can choose from LiHD (High Density Lithium Ion) battery packs with capacities of 4.0 Ah, 5.5 Ah or 10.0 Ah, which have an extended lifespan, more power and longer operating time than standard lithium batteries
• 2 years of warranty

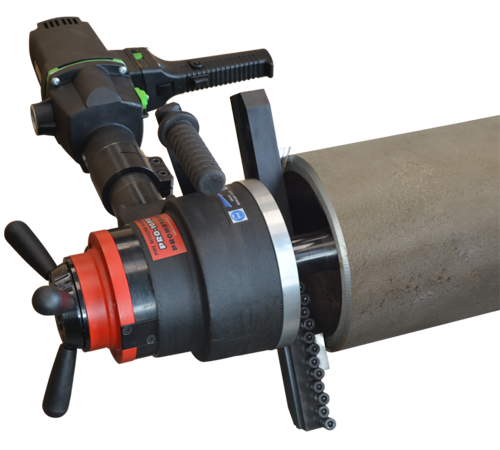

PRO-10 PB | Portable Pipe Beveler & Flange Facer

PRO-10 PB is a heavy-duty ID mounted pipe beveller utilizing self-centering expandable mandrels to provide quick and proper alignment to a pipe or a tube prior to machining operations. The beveller is capable of milling the OD bevel, root face and ID counterbore to create a uniform wall thickness around the joint and ensure full weld penetration. Optional accessories extend the possible applications of the PRO-10 PB to include flange facing and oval beveling.

• can be mounted in pipe or tubing with a minimum inside diameter of 38 mm (1.5”) and bevel outside diameters up to 355 mm (14”)
• available with a powerful pneumatic motor or a high-torque electric motor
• spindle disc with two tool bit holders for more stable, less stress-sensitive operation of tool bits
• standard and custom made tool bits available
• J-bevel tool bits available for high welding efficiency on thicker walled pipe
• self-centering expandable ID mounted mandrels enable highly repeatable and consistent fit-up and can be rapidly deployed from one pipe to another to reduce cycle times and improve workflow
• it can be used efficiently by a single operator
• 2 years of warranty

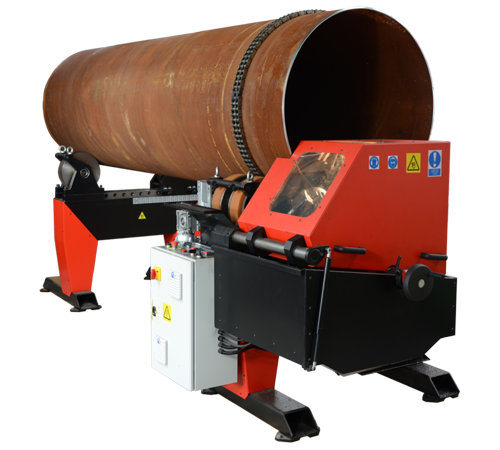

PRO-40 PBS | Stationary Pipe Beveling Machine

PRO-40 PBS is large diameter stationary machine for beveling and facing pipes, tanks or tubes in a range of diameters from 200 mm (8”) up to 1000 mm (40”). High-speed rotary milling head with replaceable inserts enables effective and efficient machining with bevel widths up to 45 mm (1-3/4”) within a range of angles between 0o and 60o. Optional accessories expand the possible applications of the PRO-40 PBS to create internal bevels up to 20 mm width and either R6 or R8 J-groove end preparation.

• 200mm to 1000mm diameter, capacity to cover most of the common applications
• the continuously adjustable bevel angle between 0 and 60 degrees
• can bevel pipes made of carbon or stainless steel
• optional oval pipe tracking attachment enables consistent land/root face thickness (available either with a brand new machine or for retrofitting)
• maximum allowed pipe weight up to 10.000 kg with optional steel rollers
• overload protection to prevent motor damage
• PRO-40 PBS produces accurate bevels in a fraction of the time required by traditional single-point machining, saving time, and money and improving accuracy
• 2 years of warranty
